The SmartSwitch 2000 Chassis View
To access the Port Redirect window:
1. Click on D
evice in the Chassis View menu bar to display the Device menu.
2. Click Port R
edirector. The Port Redirect window, Figure 2-17, opens.

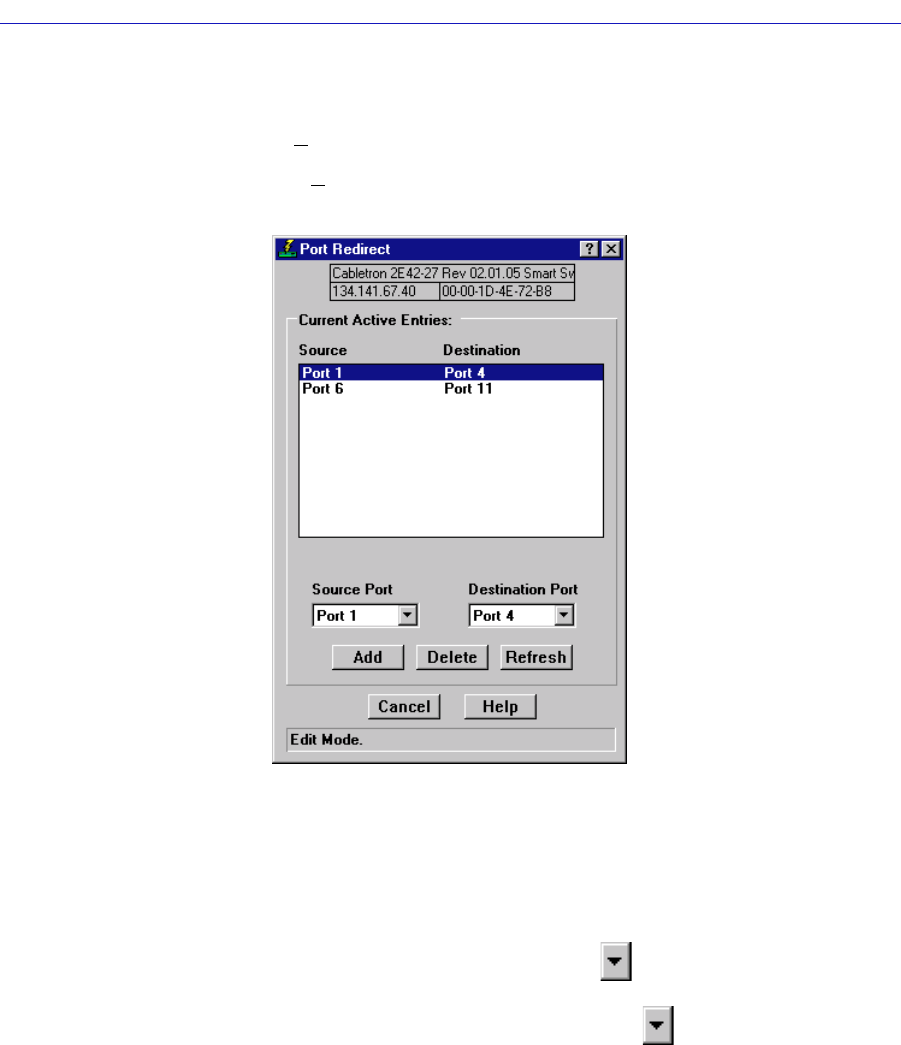

Figure 2-17. The Port Redirect Window
The current port mappings will be listed in this window. You may add or delete
entries from this window.
To add an entry:
1. Next to the Source Port display box click on and select the desired source
port (Port X) from the drop down list.
2. Next to the Destination Port display box click on and select the desired
destination port (Port X) from the drop down list.
3. Click Add to add the redirect pair you have just configured to the list.
The new entry will now be displayed in the Current Active Entries list in this
window and the port traffic will begin to be redirected.
