Viewing Chassis Information 2-21
The SmartSwitch 2000 Chassis View
Out Octets The number of bytes transmitted by this interface,
expressed as a percentage of the theoretical maximum
load.
When you select this option, a Bar Graph field will be added to the interface
display area; this field is only available when Load is the selected base unit.
Rate
The count for the selected statistic during the last poll interval. The available
parameters are the same as those provided for Raw Counts. Refer to the Raw
Counts section, above, for a complete description of each parameter.
Viewing Interface Detail
The Interface Statistics window (Figure 2-9) provides detailed MIB-II interface
statistical information — including counts for both transmit and receive packets,
and error and buffering information — for each individual port interface.
Color-coded pie charts also let you graphically view statistics for both received
and transmitted Unicast, Multicast, Discarded, and Error packets.
To open the Interface Statistics window:
1. In the I/F Summary window, select the interface for which you’d like to view
more detailed statistics.
2. Click on Detail. The appropriate I/F Statistics window, Figure 2-9, opens.

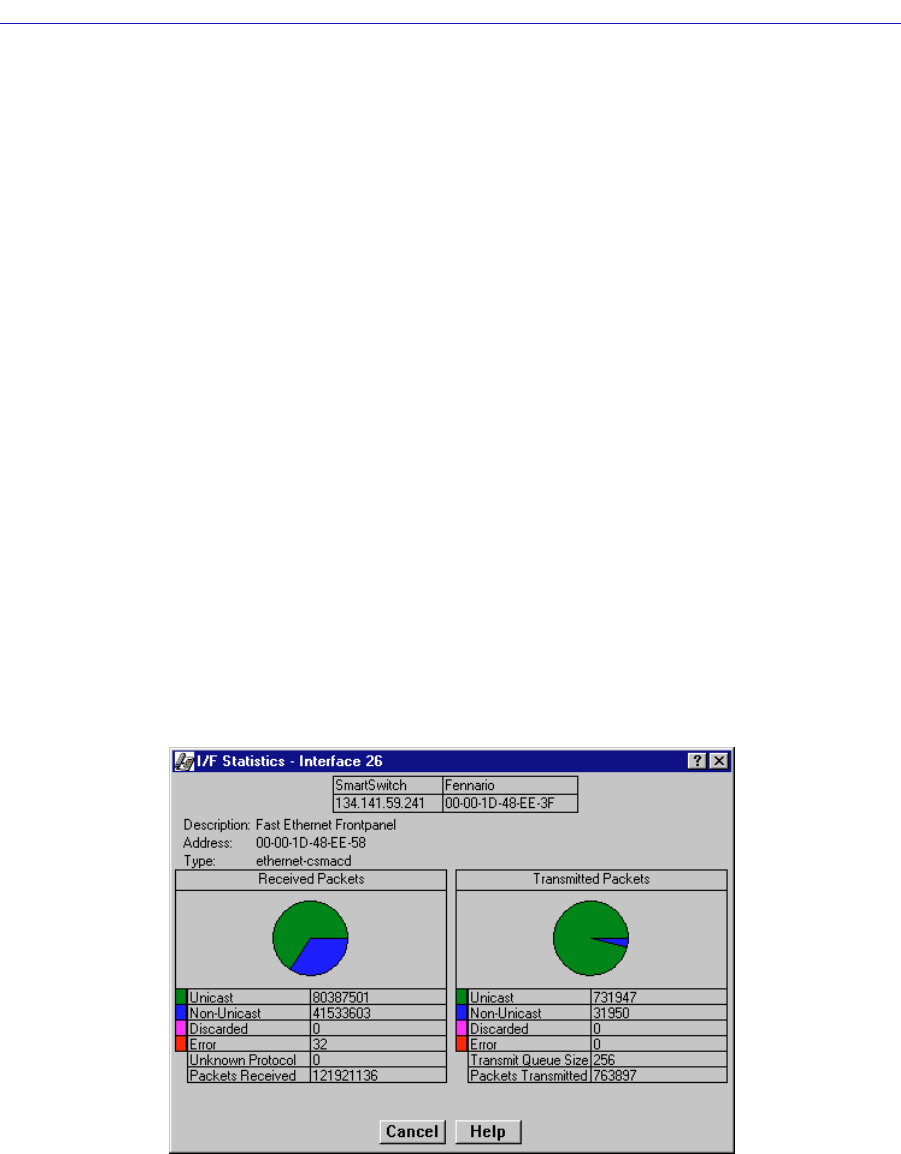

Figure 2-9. Detail Interface Statistics
