Viewing Chassis Information 2-17
The SmartSwitch 2000 Chassis View
Module Type
From the Module menu on the SmartSwitch 2000 Chassis View window, you can
view a description of the SmartSwitch 2000.
1. Click on the SmartSwitch 2000 module index. The Module Menu opens.
2. Select Module Type. A Module Type text box opens, describing the
SmartSwitch 2000.

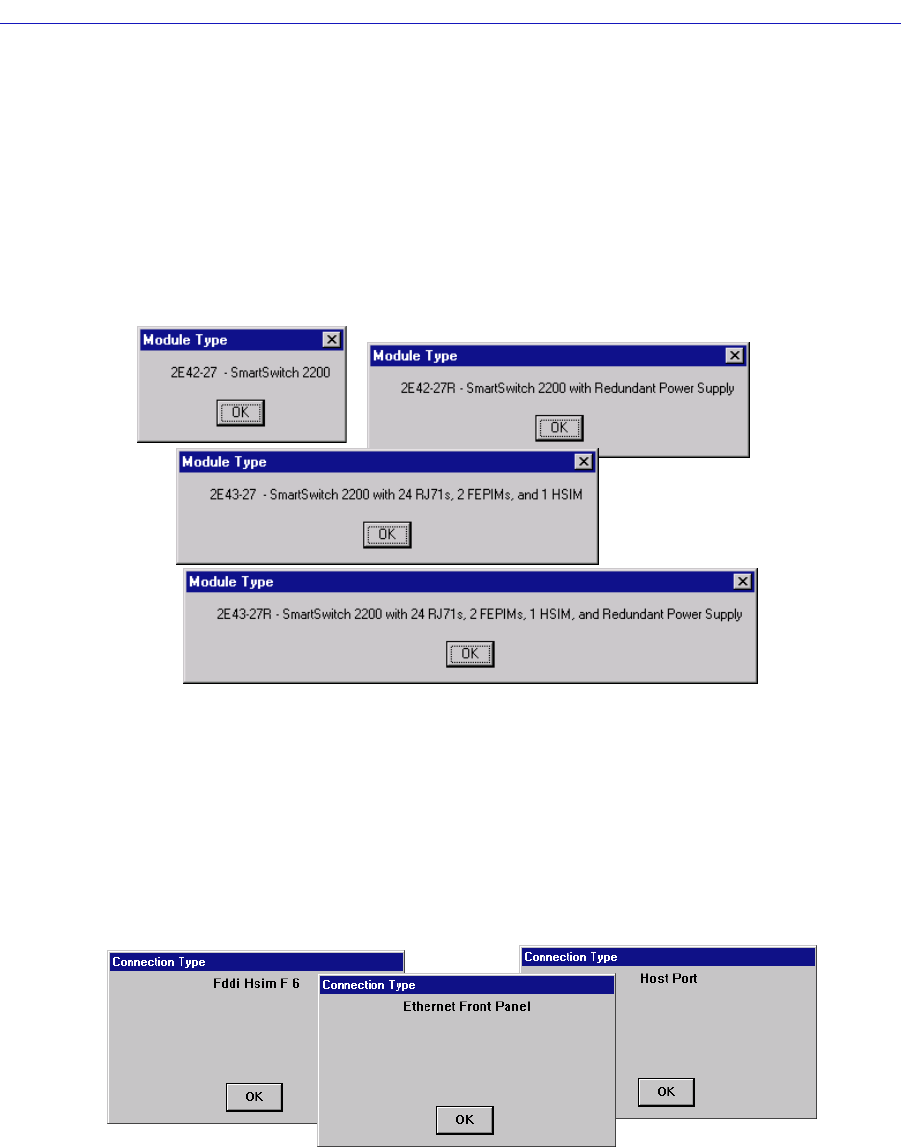

Figure 2-5. Sample Module Type Windows
Connection Type
If your SmartSwitch 2000 supports the ctIfConnectionType OID, its Port menus
will contain the Connection Type option. Selecting this option will display a
window that describes the selected interface’s connection type.
Figure 2-6. Sample Connection Type Windows
