Configuring IP Priority
The IP Priority Configuration window allows you to assign priority transmission
to up to 16 IP addresses communicating across the HSIM-W87.
To access the IP Priority Config window:
1. Click on the appropriate Module Index to access the Module menu.
2. Select IP Priority Config. The IP Priority Config window, Figure 8-3, opens.

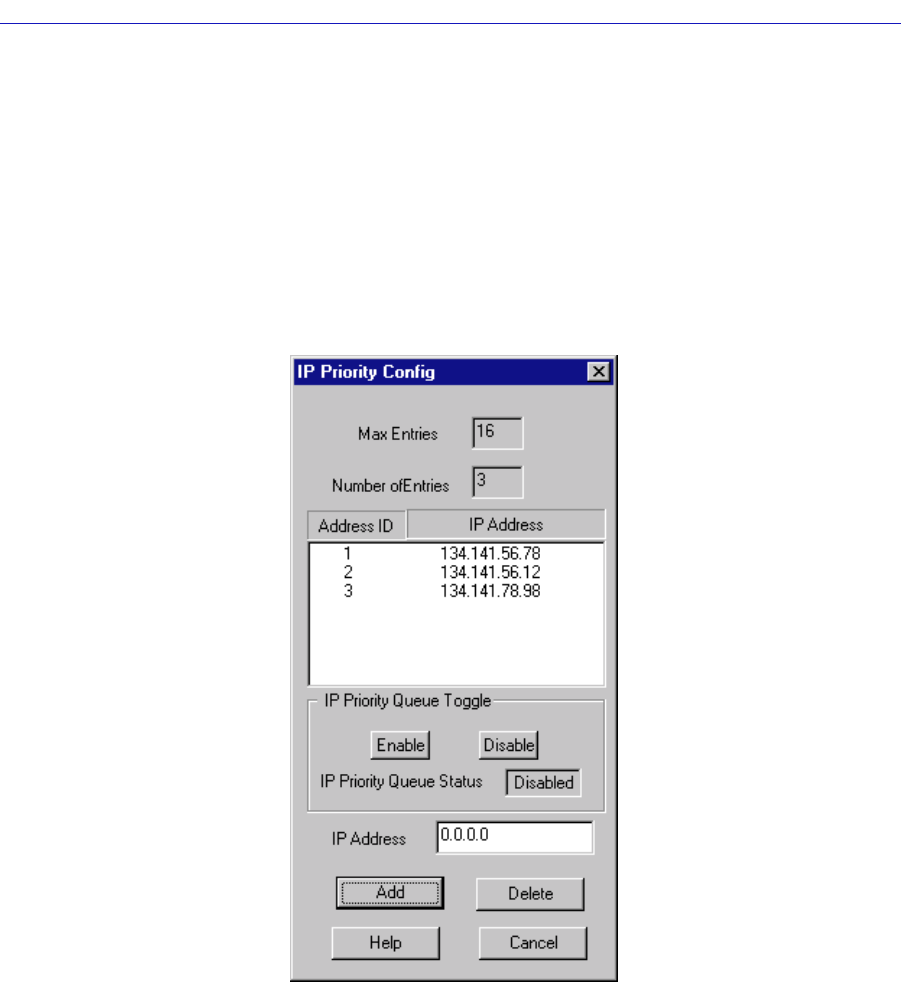

Figure 8-3. The IP Priority Config Window
In the IP Priority Config window there several fields and a list box displaying the
current IP addresses that have been configured for priority transmission. The
following information is provided in the window:
Max Entries
This is a read-only field that displays the maximum number (16) of Priority IP
addresses that can be configured.
