Alarm Limits 5-15
Managing Ethernet MicroLAN Switches

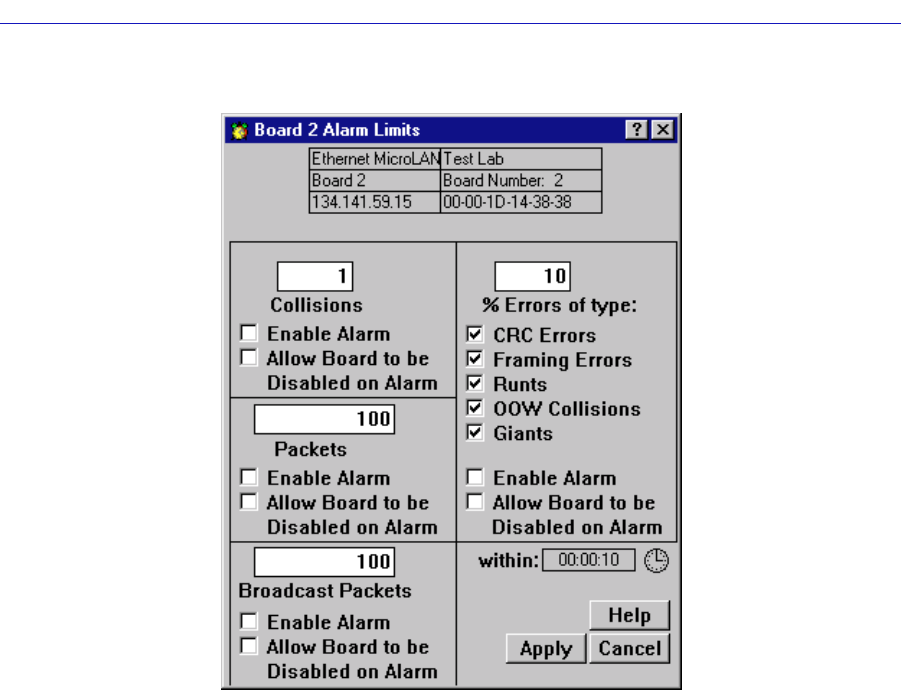

Figure 5-7. The Board Alarm Limits Window
To access the port-level Alarm Limits window:
1. Click once on the appropriate Port to display the Port menu.
2. Click on Alarm Limits. The Port Alarm Limits window, Figure 5-8, opens.
When using the Alarm Limits screens to set your alarm thresholds, keep in mind
that repeater-level thresholds will apply to all traffic received by the selected
repeater channel; board-level thresholds will apply only to traffic on the selected
board; and port-level thresholds will apply to traffic on the specific port.
