Repeater Statistics 5-9
Managing Ethernet MicroLAN Switches
Accessing the Performance Graph Windows
To access the repeater-level Performance Graph window:
1. Click on R
epeater on the Chassis View menu bar; a menu listing active
repeater channels opens.
2. Select the appropriate repeater channel (A
- H) to reveal the Repeater menu.
3. Click on Performance G
raph. The Performance Graph window, Figure 5-4,
opens.

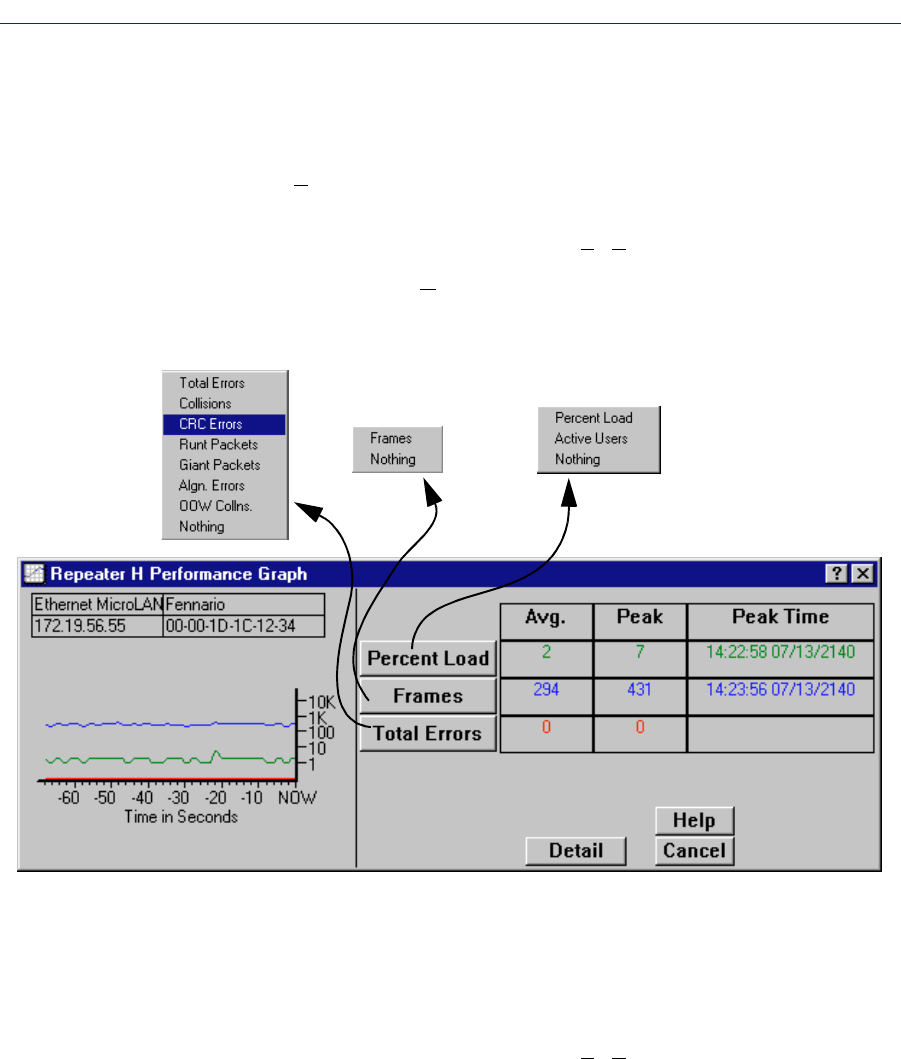

Figure 5-4. The Repeater Performance Graph Window
To access the board-level Performance Graph windows:
1. Click on the appropriate Module Index to display the Module menu.
2. Select the appropriate repeater channel (A
- H) to reveal the board-level
Repeater menu.
3. Click on Performance Graph. The board-level Performance Graph window
opens.
To access the port-level Performance Graph windows:
1. Click on the appropriate Port in the Chassis View display; the Port menu
opens.
