Repeater Statistics 5-3
Managing Ethernet MicroLAN Switches

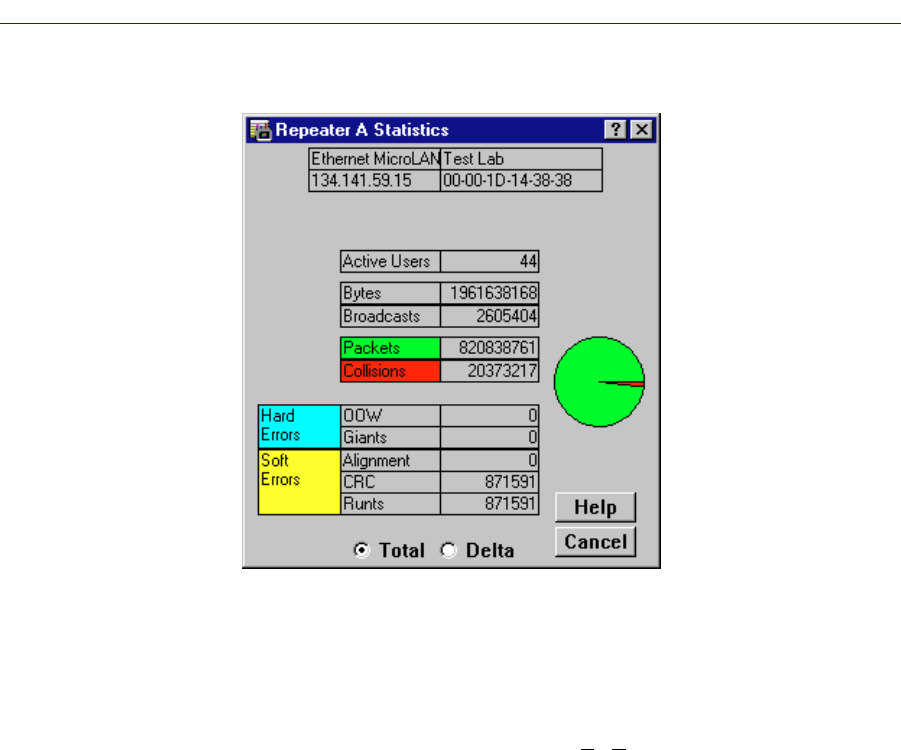

Figure 5-1. The Repeater Statistics Window
To open the board-level Statistics window from the Chassis View window:
1. Click on the appropriate Module Index to display the Module menu.
2. Select the appropriate repeater channel (A
- H) to reveal the board-level
Repeater menu.
3. Click on Statistics. The board-level Statistics window opens.
To access the port-level Statistics window:
1. Click on the appropriate Port to display the Port menu.
2. Click on Statistics. The port-level Statistics window opens.
The Module and Port Statistics windows are the same as the Statistics window
displayed in Figure 5-1, except that they display statistics applicable to the
module or port.
