- Enterasys Network Adapter Hardware Installation Guide

Using LANVIEW
4-2 Troubleshooting
Table 4‐1describestheLEDindicationsandprovidesrecommendedactionsasappropriate.

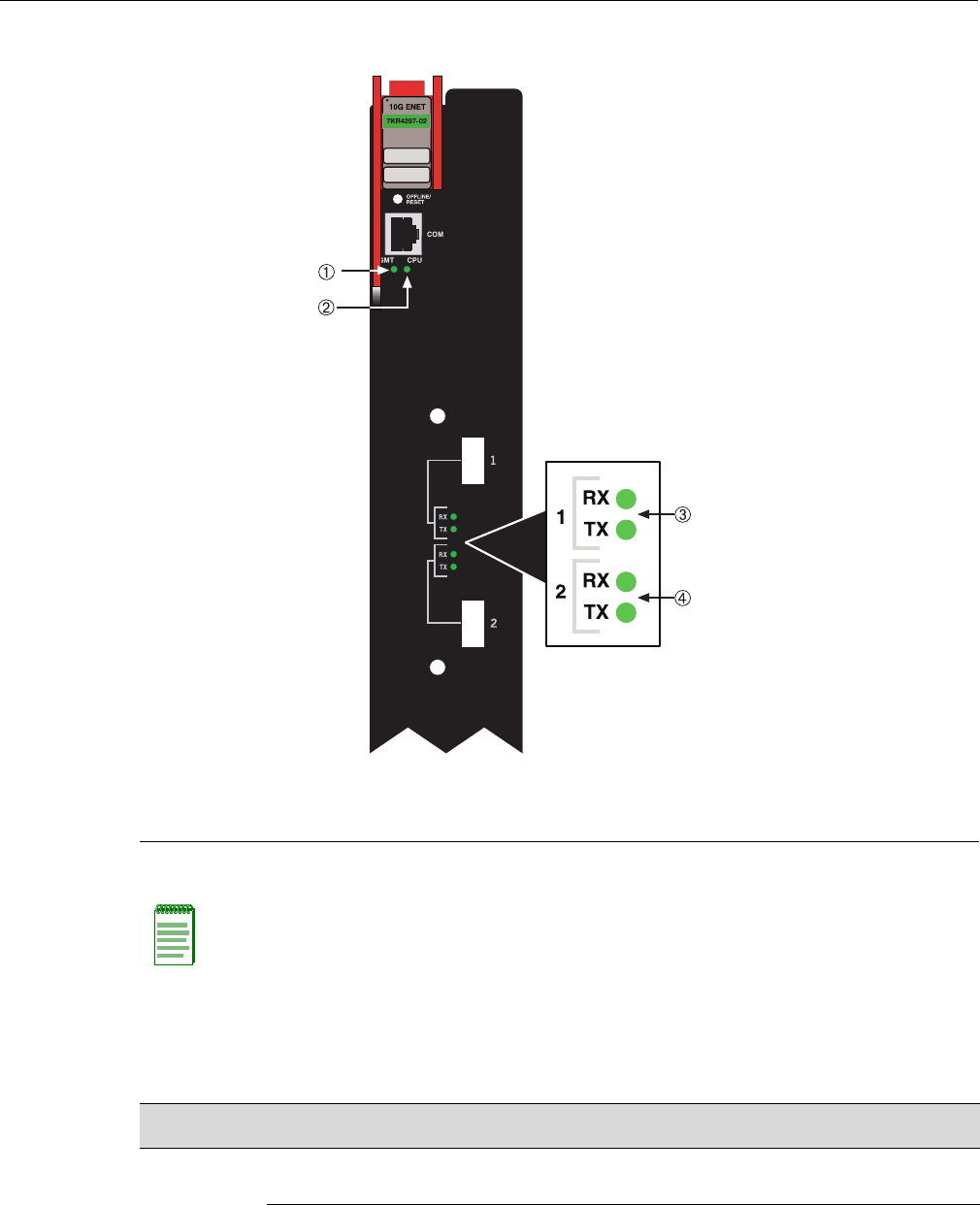

Figure 4-1 LANVIEW LEDs
1 MGMT LED 3 Port 1, RX and TX LEDs
2 CPU LED 4 Port 2, RX and TX LEDs
Note: The terms flashing, blinking, and solid used in Ta bl e 4- 1 indicate the following:
Flashing indicates an LED is flashing randomly.
Blinking indicates an LED is flashing at a steady rate (approximately 50% on, 50% off).
Solid indicates a steady LED light. No pulsing.
Alternately indicates an LED is flashing in a steady rate other than 50% on, 50% off.
Table 4-1 LANVIEW LEDs
LED Color State Recommended Action
MGMT None Off. This module is NOT the
Management Module.
None.
Green Solid. This module is the
designated Management
Module.
None.
