IQ Accessories Specifications Sheet
To learn more about Enphase offerings, visit enphase.com
© 2018 Enphase Energy. All rights reserved. All trademarks or brands used are the property of Enphase Energy, Inc.
2018-01-03
Q AGGREGATOR SPECIFICATIONS
Q Aggregator Q-BA-3-1P-60 (single-phase). Combines up to three microinverter branches into one home run.
Protect with maximum 60 A, 2-pole OCPD.
Q Commercial Aggregator Q-BA-3-3P-35 (three-phase). Combines up to three, single-phase microinverter branches into a three-
phase home run. Protect with maximum 40 A, 3-pole OCPD.
Dimensions 190 mm (W) x 227 mm (D) x 80 mm (H) [7.5 in (W) x 9 in (D) x 3.2 in (H)]
Homerun conductor size range #12 to #4 AWG
Enclosure rating NEMA3 (up to 45° from horizontal)
Temperature range -40° C to +55° C (-40° F to +122° F)
Compliance UL1741 (assembled product) and UL6703 (bulkhead connectors)
CONDUCTOR SPECIFICATIONS
Certication UL3003 (raw cable), UL 9703 (cable assemblies), DG cable
Flame test rating FT4
Compliance RoHS, OIL RES I, CE, UV resistant, combined UL for the United States
Conductor type THHN/THWN-2 dry/wet
Disconnecting means The AC and DC bulhead connectors have been evaluated and approved by UL for use as the load-break
disconnect required by NEC 690.
Q CABLE TYPES / ORDERING OPTIONS
Model Number
Max Nominal Voltage Connector Spacing PV Module Orientation Connector Count per Box
Q-12-10-240
277 VAC 1.3 m (4.2 ft) Portrait 240
Q-12-17-240
277 VAC 2.0 m (6.5 ft) Landscape (60-cell) 240
Q-12-20-200
277 VAC 2.3 m (7.5 ft) Landscape (72-cell) 200
ENPHASE Q CABLE ACCESSORIES
Name
Model Number Description
Raw Q Cable
Q-12-RAW-200 300 meters of 12 AWG cable with no connectors
Field-wireable connector (male)
Q-CONN-10M Make connections from any Q Aggregator open connector
Field-wireable connector (female)
Q-CONN-10F Make connections from any Q Cable open connector
Cable Clip
Q-CLIP-100 Used to fasten cabling to the racking or to secure looped cabling
Disconnect tool
Q-DISC-10 Disconnect tool for Q Cable connectors, DC connectors, and AC module mount
Q Aggregator sealing caps (male)
Q-BA-CAP-10 Sealing cap for unused aggregator connections
Q Cable sealing caps (female)
Q-SEAL-10 One needed to cover each unused connector on the cabling
Terminator
Q-TERM-10 Terminator cap for unused cable ends
Replacement DC Adaptor (MC4)
Q-DCC-2 DC adaptor to MC4 (max voltage 100 VDC)
Replacement DC Adaptor (UTX)
Q-DCC-5 DC adaptor to UTX (max voltage 100 VDC)

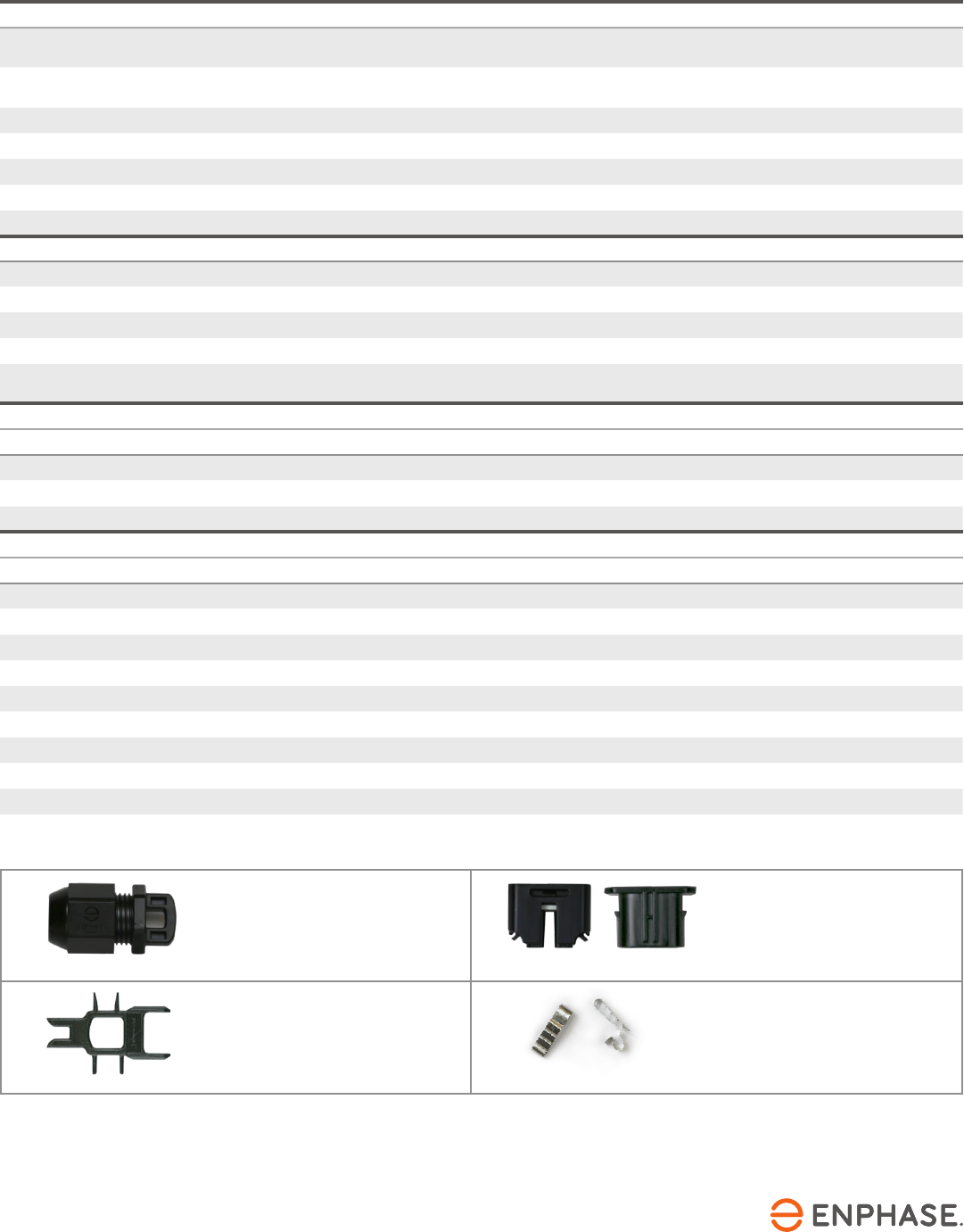

Enphase
Q Cable Accessories
TERMINATOR
Terminator cap for unused cable
ends, sold in packs of ten
(Q-TERM-10)
SEALING CAPS
Sealing caps for unused aggregator
and cable connections
(Q-BA-CAP-10 and Q-SEAL-10)
DISCONNECT TOOL
Plan to use at least one per
installation, sold in packs of ten
(Q-DISC-10)
CABLE CLIP
Used to fasten cabling to the racking
or to secure looped cabling, sold in
packs of ten (Q-CLIP-100)
