USER MANUAL
PTM 215B – 2.4 GHZ Pusbutton Transmitter Module
© 2016 EnOcean | www.enocean.com F-710-017, V1.0 PTM 215B User Manual | v0.8 | September 2016 | Page 34/42
1) these catwalks are not needed when using one single rocker only 2) dimensions of rocker part

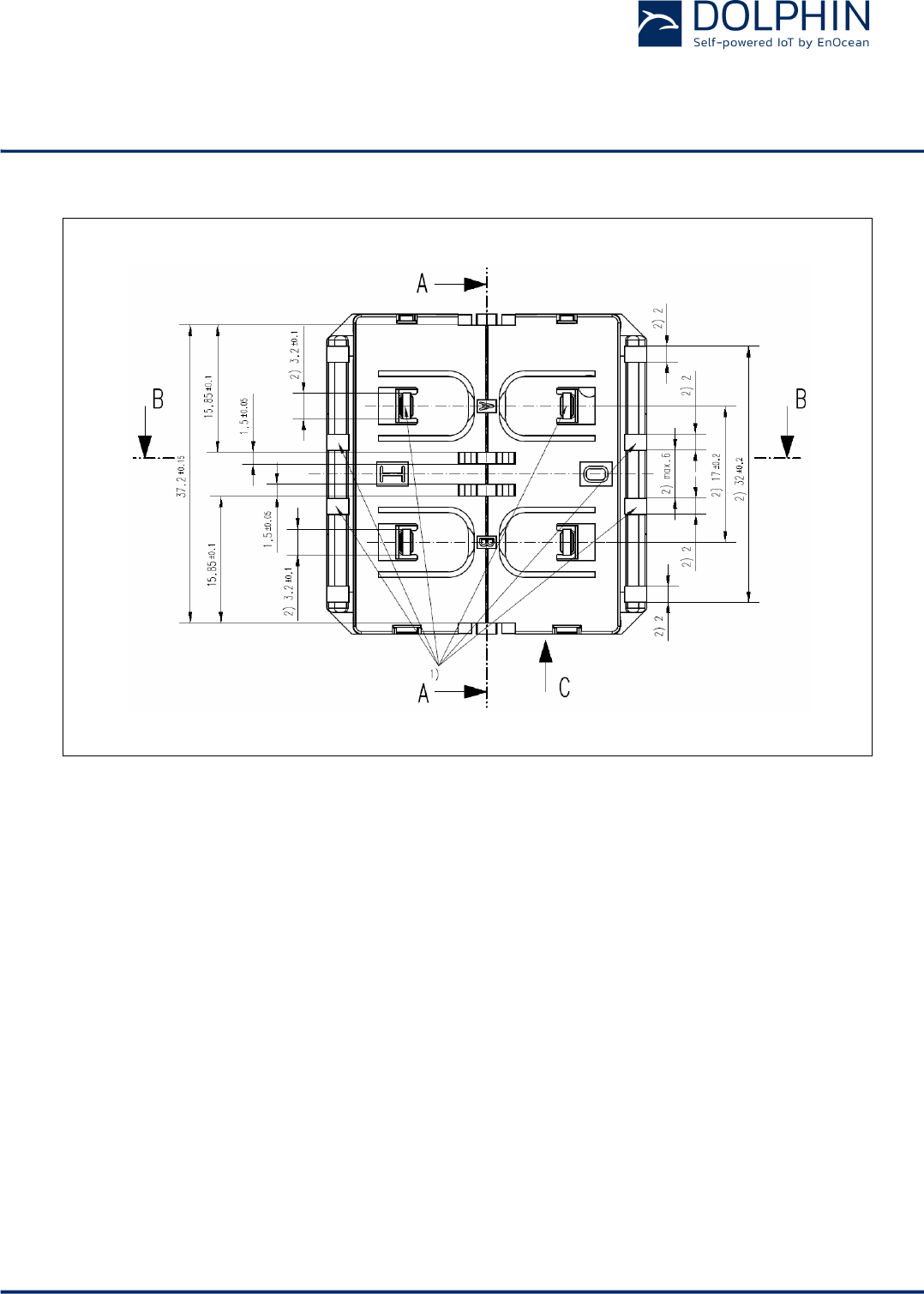

Figure 22 – PTM 215B, top view (note cut A, B and C marking)
