PTM 215B – 2.4 GHZ Pusbutton Transmitter Module

3 Device Integration

PTM 215B is designed for integration into button or rocker based switches. It implements

the established PTM 2xx mechanical form factor and can therefore be used with a wide va-

riety of existing designs.

3.1 Mechanical Interface Characteristics

Energy bow travel / o

perating force 1.8 mm / typ. 10

At room temperature

Only one of the two energy bows may be actuated at the same time!

Restoring force at energy bow

typ. 0.7 N

Minimum restoring force of 0.5 N is required for correct operation

Number of operations at 25°C typ. 100.000 actuations tested according to VDE 0632 / EN 60669

Cover material Hostaform (POM)

Energy bow material PBT (50% GV)

3.2 Mechanical Interface Drawings

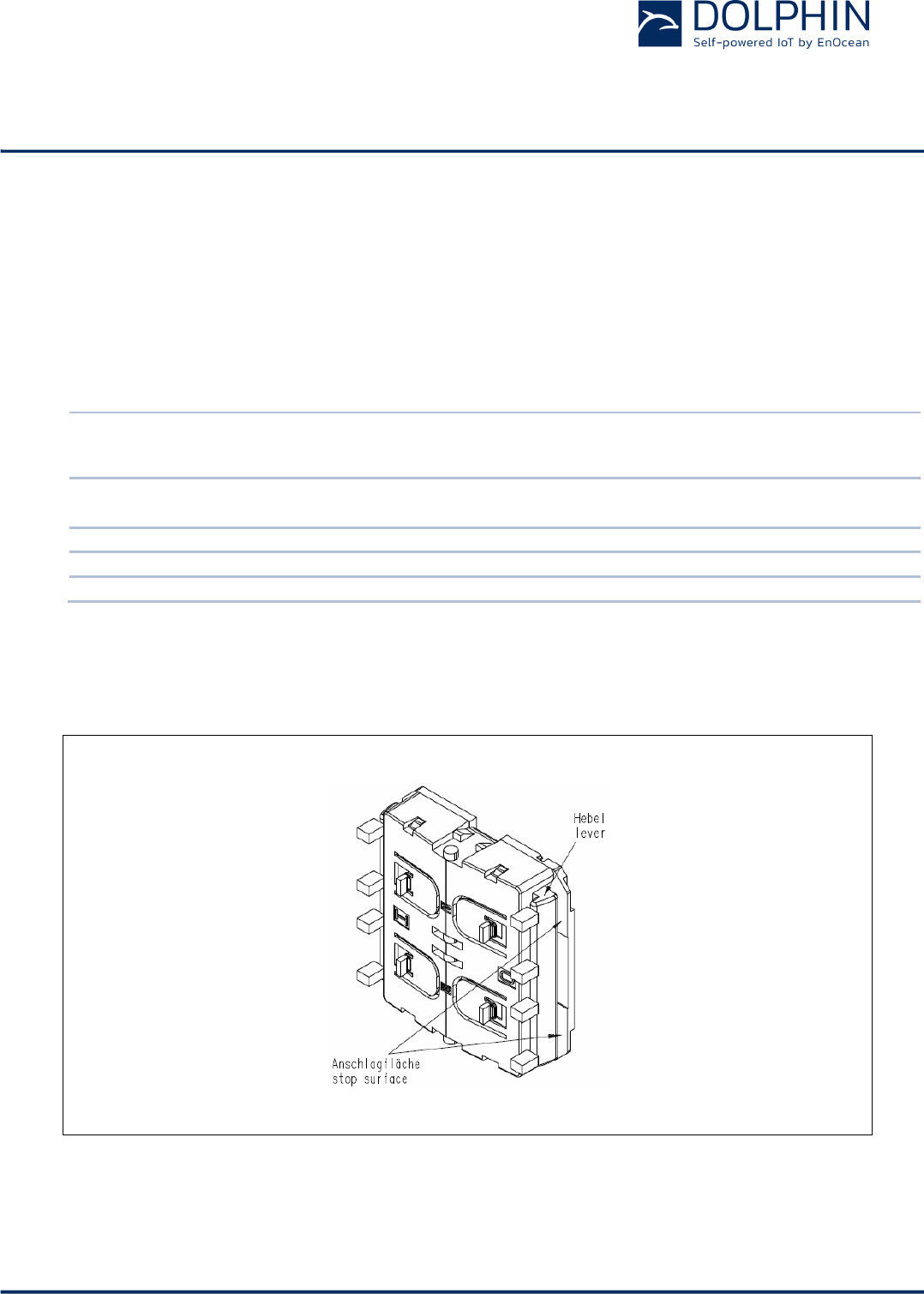

Figure 21 – PTM 215B, tilted view (including rocker catwalks)
