2.11 NFC interface
PTM 215B implements NFC Forum Type 2 Tag functionality as specified in the ISO/IEC
14443 Part 2 and 3 standard.
This NFC functionality can be used to access (read and write) the PTM 215B configuration
memory and thereby configure the device as described in the following chapters.
2.11.1 Configuration memory organization
The PTM 215B configuration memory is divided into the following areas:
n Public data
n Protected data
In addition to that, PTM 215B maintains a private configuration memory region used to
store default parameters and confidential information which is not accessible to the user.

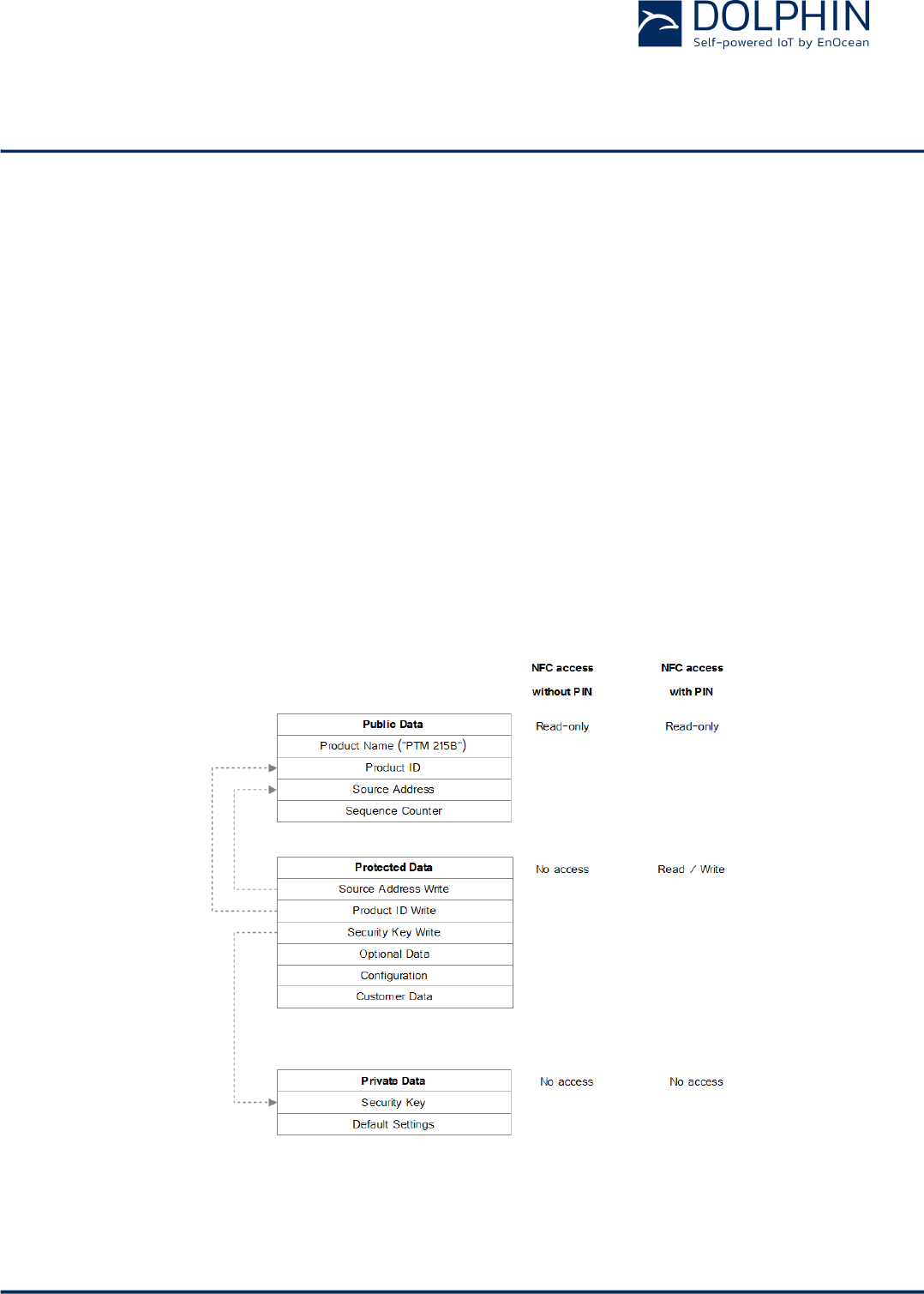

Figure 18 below illustrates the configuration memory organization used by PTM 215B.
Figure 18 – Configuration memory organization
