BASIC NETWORK SETTINGS WIRELESS LAN 5G SETUP
ESR600H/ESR750H 6-41 USER GUIDE
Access Point Mode
Configure the wireless settings of the router in access point mode.
Wireless Distribution System Mode
Configure the wireless settings of the router in WDS mode.
 Band: Select a wireless standard for the network from the
following options:
 5 GHz (802.11 a)
 5 GHz (802.11 n)
 5 GHz (802.11 a/n)
 Enable SSID# Select the number of wireless groups,
between one and four, available on the network.
 SSID[#] Enter the name of the wireless network(s).

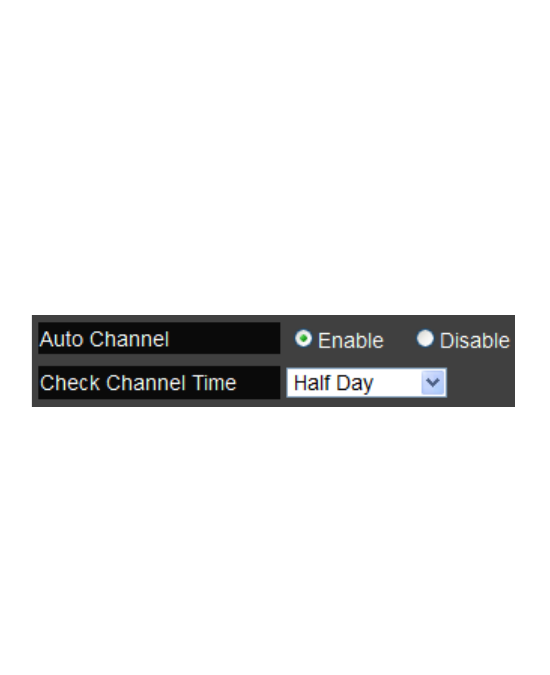

 Auto Channel Enable or disable having the router auto-
matically select a channel for the wireless network. Auto
channel is enabled by default. Select disable to manually
assign a specific channel. (Default = Disable)
 Check Channel Time When auto channel is enabled,
select time period that the system checks the appropri-
ate channel for the router.
 Channel When auto channel is disabled, select a
channel to assign to the wireless network.
