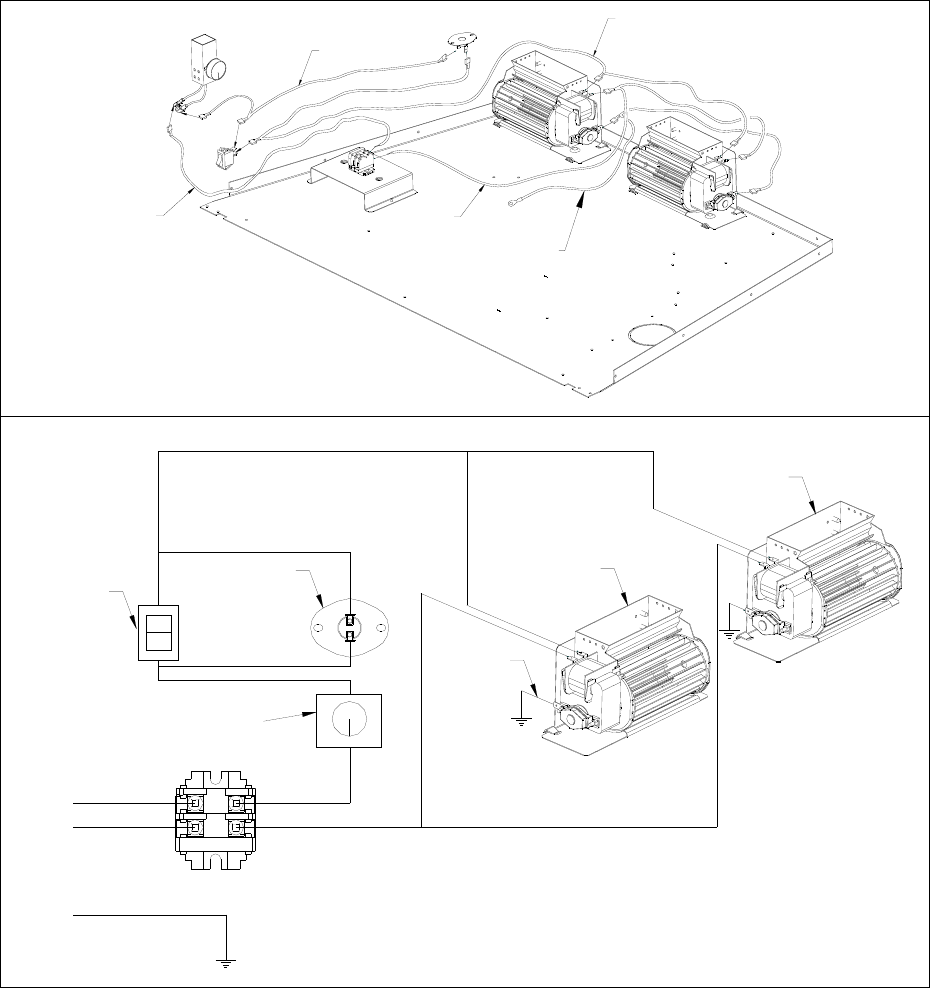

3.4.4 Blower connection
The fan will come on as soon as the fireplace reaches its minimum start temperature. Have the
wiring installed by a qualified electrician. Connect the wires from the power outlet to the
terminal block, making sure that the white wire matches the white wire on the terminal.
Connect the black wire with the black wire of the terminal block. The ground(green or
skinned wire) must be attached to the fireplace metal frame.
BLACK
BLACK
WHITE
GREEN/GROUND
BLACK
BLOWER
BLOWER
BLACK
GREEN/
GROUND
THERMODISC
BLOWER
SWITCH
RHEOSTAT
BLACK
BLACK
WHITE
TERMINAL
WHITE
BLACK
GREEN/
GROUND
