Installation manual

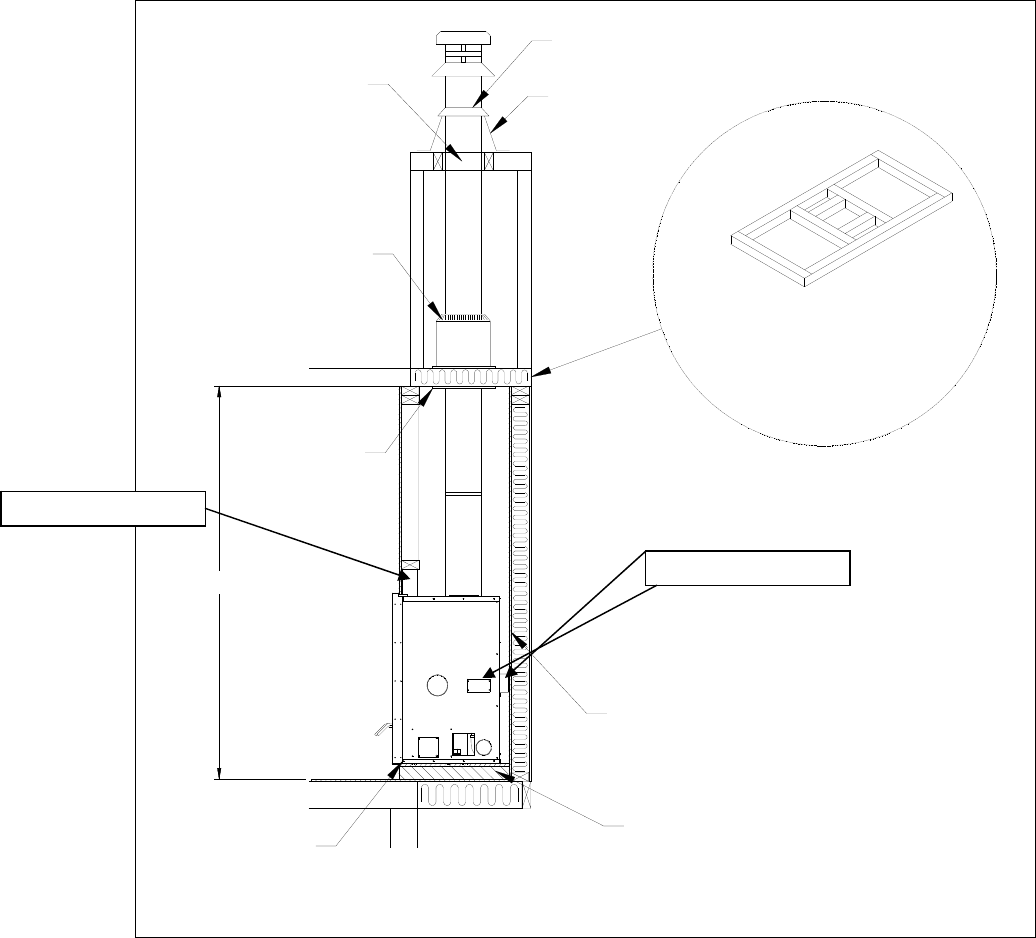

18
2" X 4"
GYPROC
7 MIN.
1/2" PLYWOOD
FIRESTOP
FOYER
ATTIC
RADIATION
SHIELD
ROOF SUPPORT
FLASHING
STORM COLLAR
NOTE:
FLOOR AND WALL BELOW THE ATTIC
MUST BE INSULATED USING THE SAME
INSULATION.
MUST HAVE THE SAME FIRESTOPPING RESISTANCE
AS ADJACENT WALL.
MUST HAVE THE SAME INSULATION AS ADJACENT
CEILING.
FOLLOW LOCAL RULES REGARDING FRAMING
CONSTRUCTION.
FLOOR /
CEILING WALL
Figure 9
Facing
1. Combustible material may be installed flush with the fireplace decorative frame.
Combustible material may not project in front of and onto the fireplace decorative
frame (figure 11).
2. Non-combustible materials such as brick, stone or ceramic tile may project in front of
and onto the fireplace decorative frame.
Spacers must be installed
Spacers must be installed
