Operator's Manual

CI Wireless Inc. Installation of the CDR812
MirrorCell Select CDR812 Manual
Rev. X1 7-13
7.8 HyperTerminal Configuration
HyperTerminal may be used for terminal emulation when using remote control of the
repeater. Use the following steps for setting up HyperTerminal.
1. In the Start menu, open the Programs folder. Go to the Accessories folder in the
Programs folder.
2. Choose Hyperterminal. In that folder, choose HyperTerminal.
3. A dialog box will ask you to name the session. Use any name you choose. Select the
icon showing the two telephones. See Figure 20.

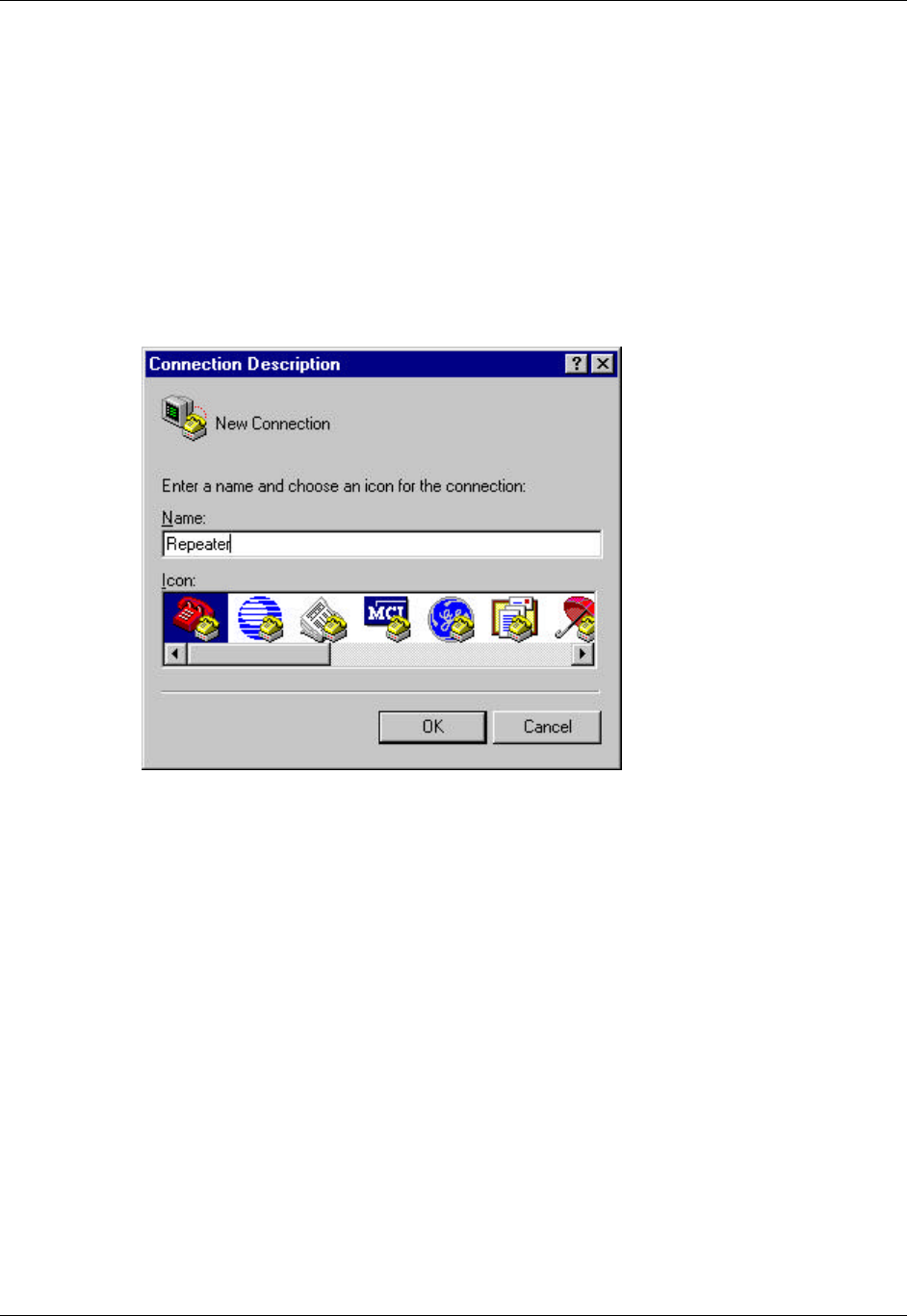

Figure 9. Connection Description in HyperTerminal.
4. For a direct connection to the repeater, choose “Direct to Com X” in the drop down
box. See Figure 21.
