Operator's Manual

CI Wireless Inc. Installation of the CDR812
MirrorCell Select CDR812 Manual
Rev. X1 7-9

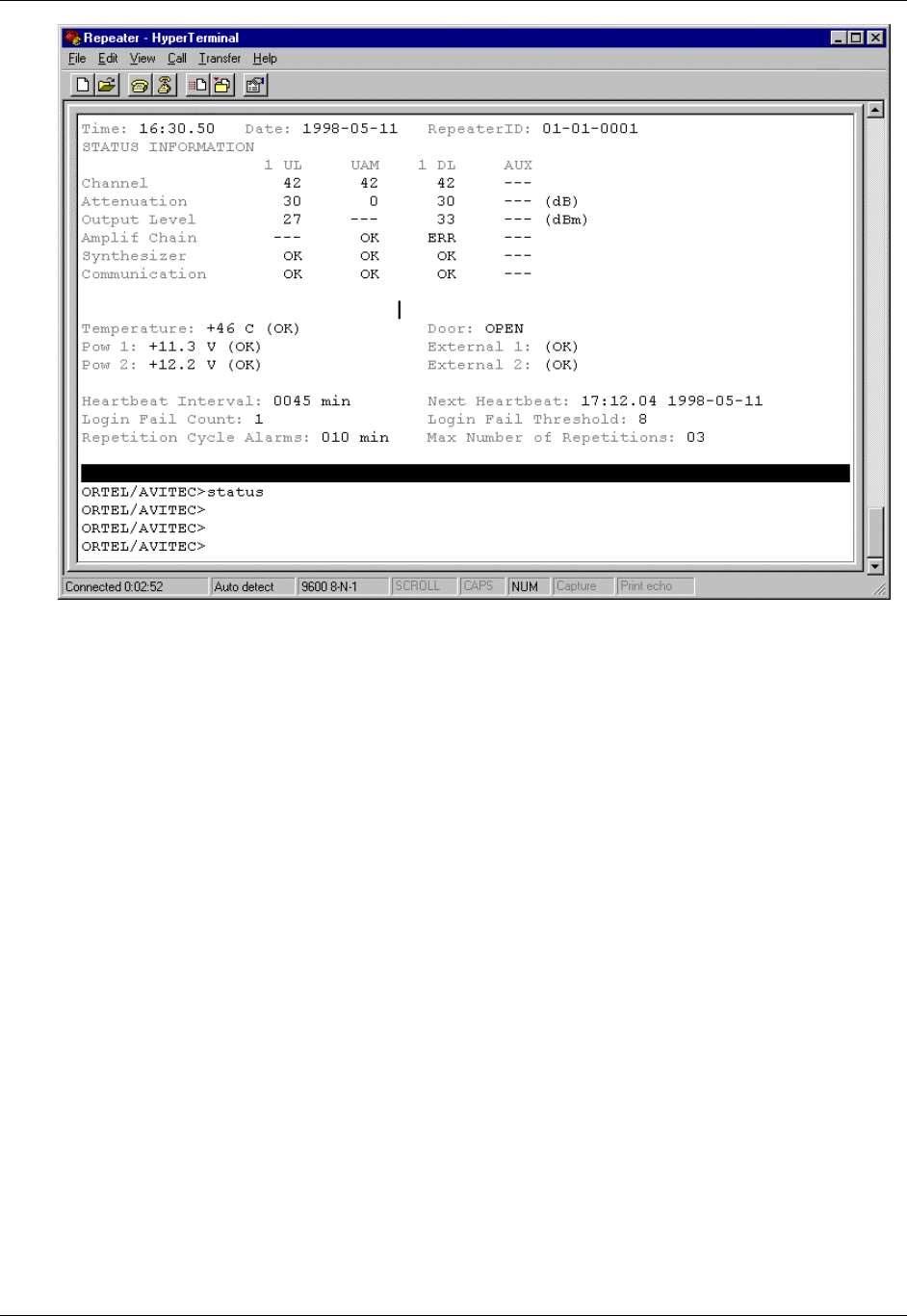

Figure 7. Status Screen for the CDR812.
The Status screen shows many important monitoring and alarm parameters for the
CDR812.
9. Set the attenuation levels of 0 – 30dB as follows. For the uplink (reverse path)
attenuation in channel 1:
SET ATU X YY N MM <enter>
X = Channel 1 within the repeater
YY = Uplink attenuation level for channel 1.
N = Channel 2 within the repeater
MM = Uplink attenuation level for channel 2.
SET ATU 1 10 2 10<enter>
sets the reverse attenuation level for the repeater’s channels 1 and 2 to 10dB. Now,
the repeater’s reverse gain will be 85 – 10 = 75dB, for the standard repeater.
For the downlink (forward path) attenuation:
