Operator's Manual

CI Wireless Inc. Installation of the CDR812
MirrorCell Select CDR812 Manual
Rev. X1 7-5
7.5.1 Repeater Dimensions

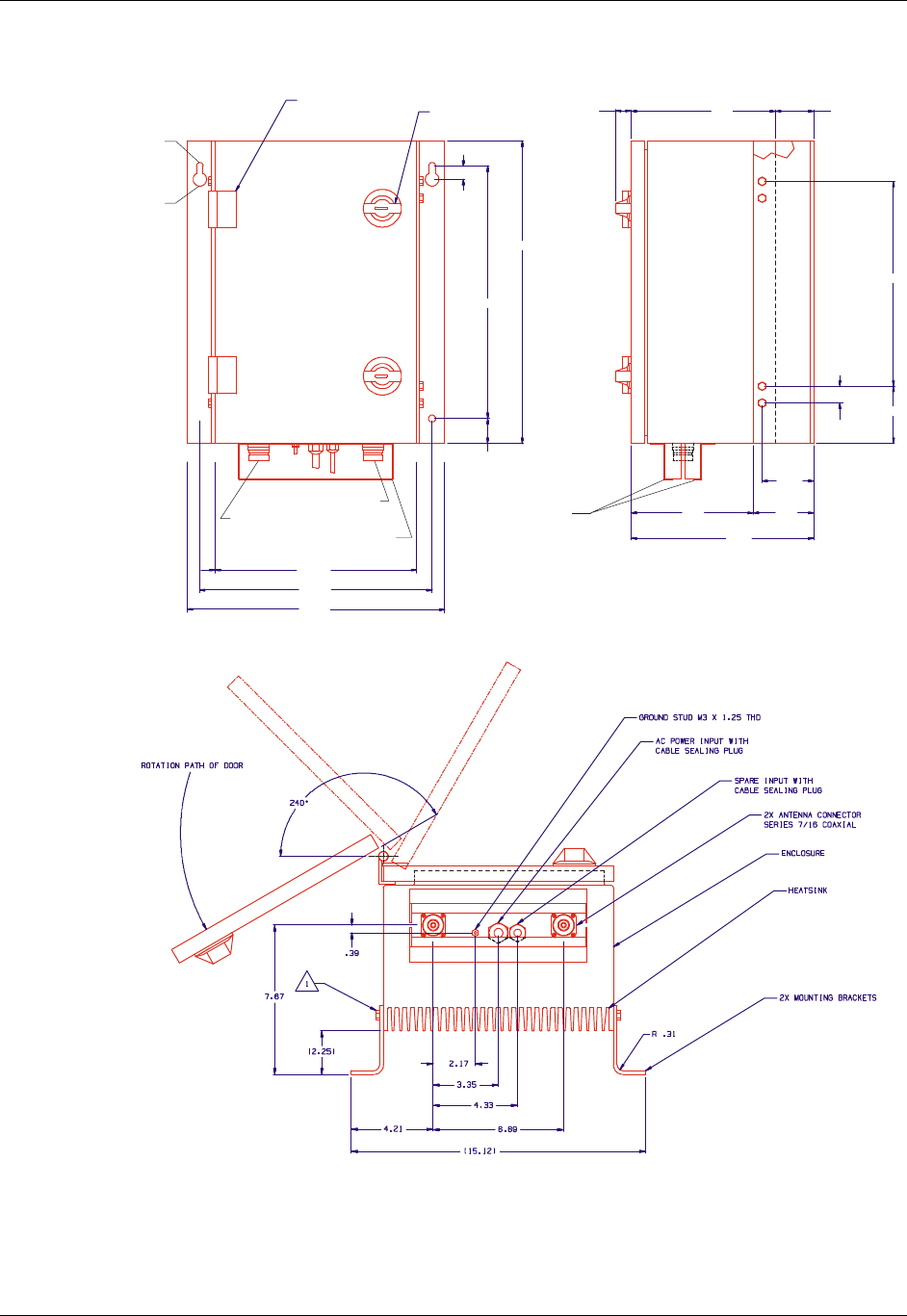

Figure 5. Repeater Dimensions, shown in inches.
8.4
2.2
.91
12.00
3.3
2x .984
3.03
3.5
10.7
7.1
2X
CABLE
2X DOOR LOCK
2X HINGE
2X R
2X R
11.8
13.62
15.1
DONOR PORT
SERVER PORT
NEARSIDE BRACKET,
PROTECTORREMOVED FOR
.79
17.7
14.8
1.4
