Description of the Major Modular Components Ortel Corporation
MirrorCell Select CDR812 Manual
2-2
Rev. X1

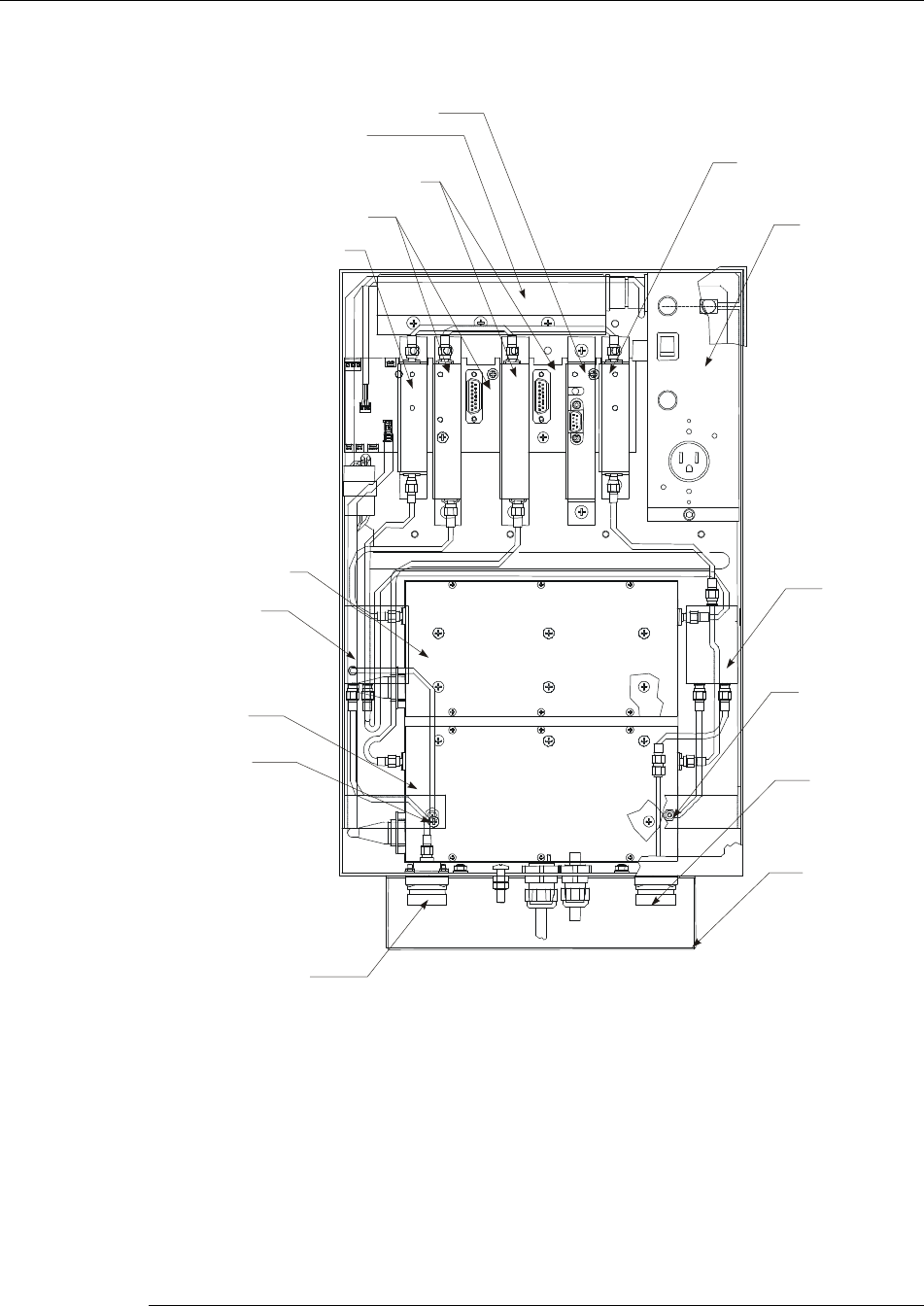

2.7 Mechanical Drawing of the CDR812 Repeater
Figure 2. Mechanical drawing of the CDR812 repeater.
Combiners are located above the duplexers.
LNA UPLINK
AC MODULE
DUPLEXER
DONOR TEST
PORT (-30dB)
UPLINK IN
(SERVER)
BRACKET, CONN.
PROTECTOR
CONTROLLER
DC - DC
PS
CHANNEL DOWNLINK
CHANNEL UPLINK
LNA DOWNLINK
PA UPLINK
DUPLEXER
PA DOWNLINK
SERVER TEST
PORT (-30dB)
DOWN LINK IN
(DONOR)
1
2
3
4
5
6
7
8
9
10
11
