updated to include options for adjusting color, name, dB offset, and the ability to cut off curves are certain
frequencies so multiple curves can be spliced together. Each curve should be easily saved and reloaded individually
or as an entire project. A 1/3 octave resolution for the RTA and inability to adjust smoothing in the Full Range
setting should both be addressed. The screen dump feature should be updated to include all views of the waterfall
plot.

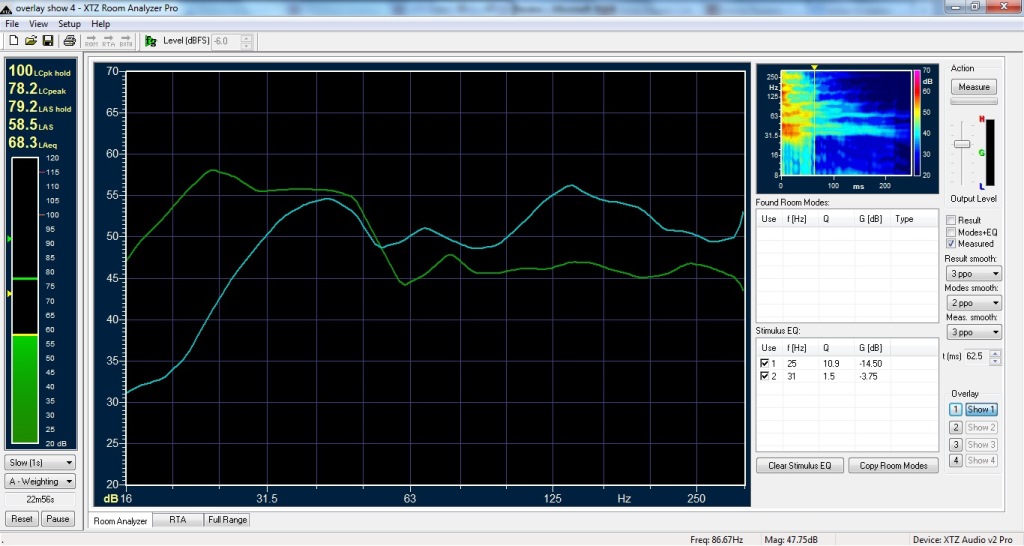

Can you guess w hich line is MartinLogan Dynamo 1500X w hich is the Em otive X-Ref 10?
It would also be nice, though not crucial, to have more control over the scale for each section of the software,
including dB and frequency range. Finally, while the user manual is pretty thorough, it does include some
grammatical errors. This makes sense since it was originally written in Swedish and subsequently translated to
English. The errors won’t impede your ability to understand the manual, but may provide a bit of humor. I would also
like to see the manual include a little more explanation of how to interpret the measurements spit out by the
software.
Conclusion
There is no current acoustic measurement system on the market that is
perfect for everyone. REW, OmniMic, and XTZ Sound are probably the most
common, but all of them have advantages and disadvantages. This system
comes as a well-built, easy-to-store or transport kit with everything you need.
The retail price of $360 is quite reasonable considering all you get. Certainly
the main draw with this system is the automatic room analyzer, which I found
to work very well. The RTA and Full Frequency measurements, including
waterfall plot, RT60, and auto align functions make it easy to calibrate a home
theater system. Still, it is missing some features found in similar programs, like an oscilloscope, distortion test, and
polar response plot. In the end, I would recommend Room Analyzer II Pro, or standard, to an individual who wants
the easiest way possible to start learning about room acoustics and how to really tweak a home theater or stereo
setup. Every other system on the market requires a little higher knowledge level and time investment to set up, run,
