DAC2 AUDIO CONVERTER OWNER’S MANUAL
Basic Operations and Input Connections
2. DAC2 Input Connections (cont’d):
EMM Optilink is selected as the digital source (connected to an EMM Labs
transport).

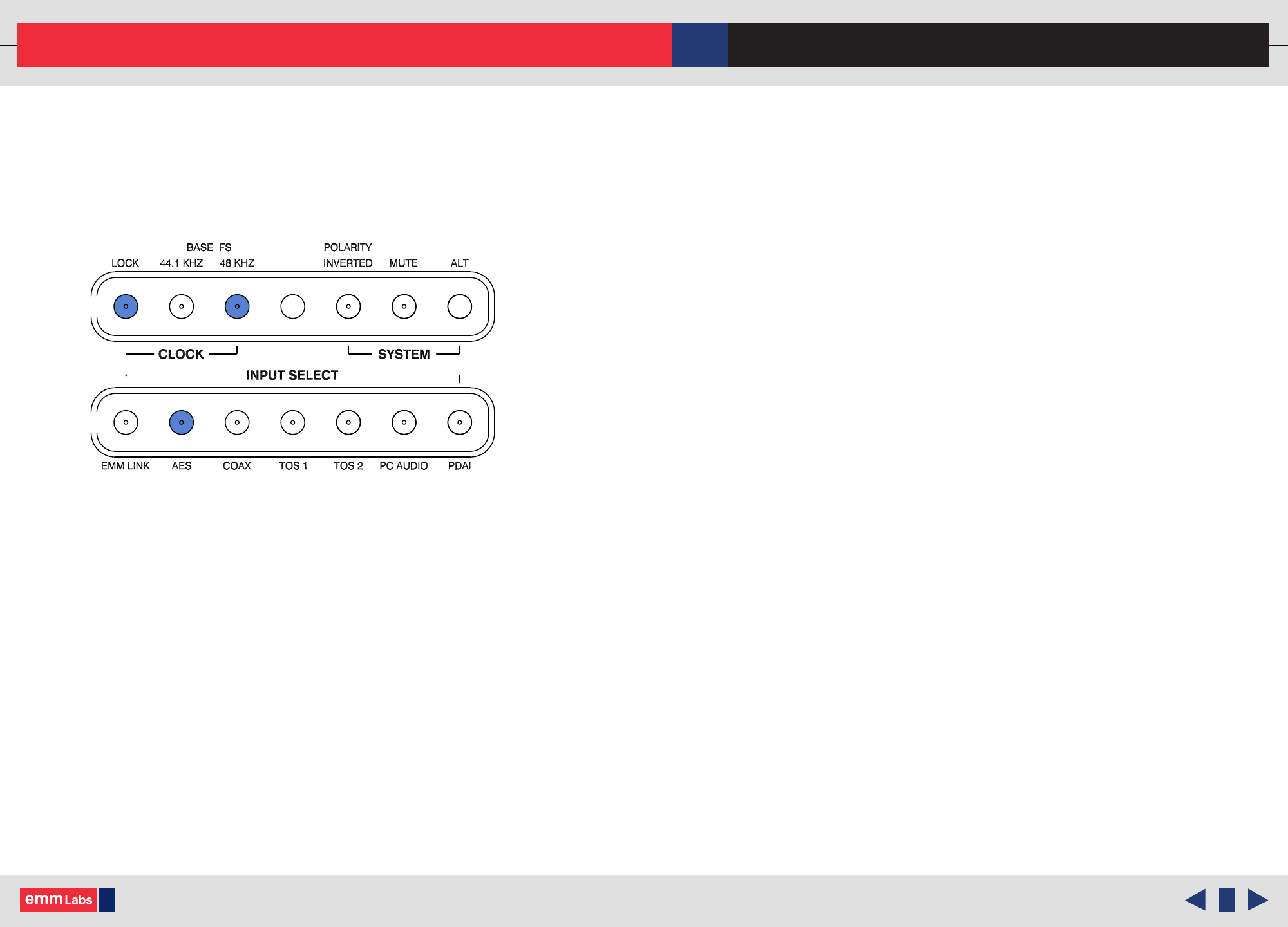

Above is another example. Here the DAC2 is connected to an AES digital source with
a base frequency of 48kHz (PCM 48kHz or 96kHz audio). For AES connections the
DAC2 uses a single AES input to carry 2 channels of PCM audio up to 96kHz.
NOTE: If the LOCK light is not ON then the DAC2 is not receiving appropriate
digital audio from the digital source. e DAC2 will automatically mute all the
outputs if it does not receive a proper digital audio signal from the selected source.
Check the source setup and cable connections for problems.
3. Using the remote and pressing the “Display DAC” button turns o all the DAC2 LEDs
except the LOCK light.
