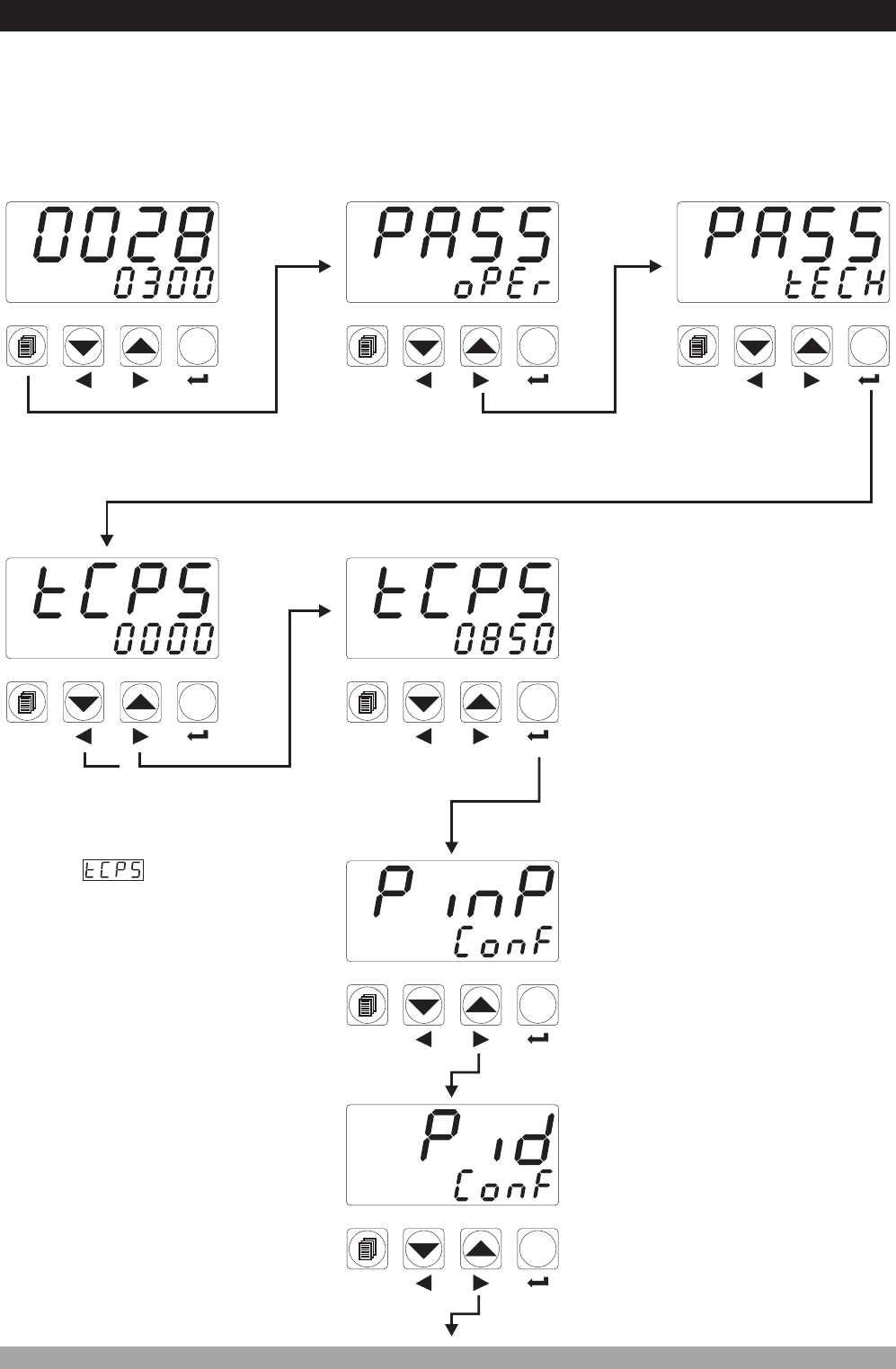

Instructions

PresstheEnterbuttonto
confirmpassword.
Operation
Screen
Techniciancanaccesstothe
followingmenubypressingmenu
changingnextbutton.
PINP CONFMenu
Configurationparametersof
processinput.
PIDCONFMenu
ParametersaboutPIDalgorithm.
Techniciancanaccesstothe
followingmenubypressingmenu
changingnextbutton.
TechnicianPassword
Operatorcannotaccesstothis
menu.
Operatorcannotaccesstothis
menu.
Technician
menu
canaccesstothe
formermenubypressing
changingbackbutton.
Whenscreenisshown,
technicianparameterscanbeseen
bypressingSET buttonwithout
enteringpassword.Butparameters
cannotbechanged.Pleaserefer
toSection 8.2.8.(Operatorand
TechnicianPasswords)
Whenmenuchangingnextbuttonis
pressed TechnicianMenuEntering
screenisshown.
Technician
MenuEntering
Screen
TechnicianPasswordEnteringscreenisaccessedbypressingSET button.
Whenmenubuttonis
pressed,OperatorMenu
Enteringscreenisshown.
OperatorMenuEnteringScreen
Iftechnicianpasswordis
not0,technicianpassword
enteringscreenisshown
52
7.8 AccessingtotheTechnicianMenu
The parameters have been divided into groups according to their functions. Every group has a
title and firstly user must determine the title (menu) for accessing to the parameters. Refer to the
parameters section for detailed information about parameters.
