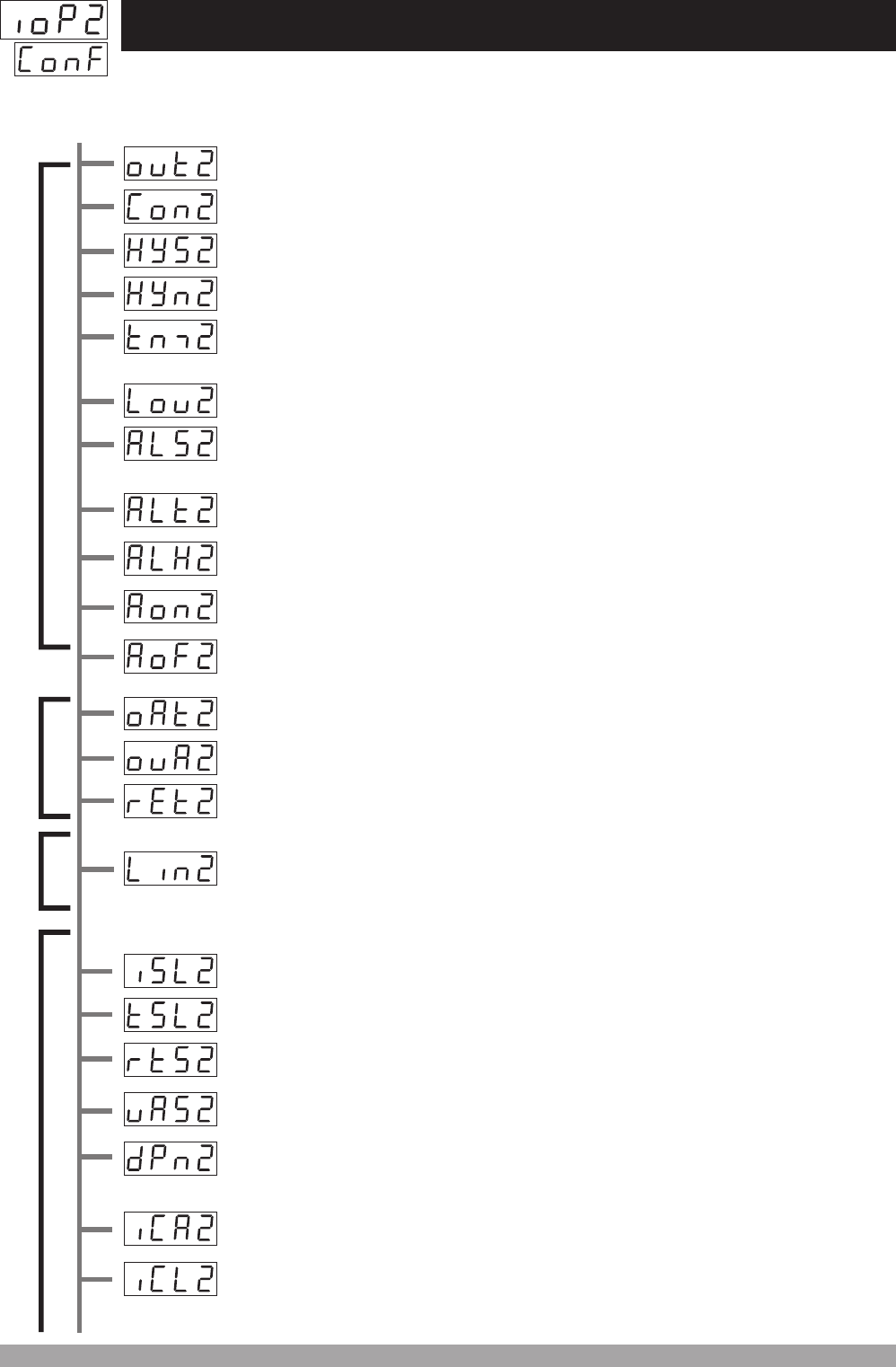

8.2.4MODULE-2ConfigurationParameters
Module-2 configuration parameters are arranged automatically by the device
according to the module type in Module-2 socket. These parameters are not
accessible if there is no module in Module-2 socket.
Definesoutputfunction
Definescontrolalgorithmofoutputmodule
Hysteresisvalueofoutputmodule
Definesoperationformofhysteresis
In ON/OFF operation, this time must be passed for the output to be
energised again.
Defineslogicoutputfunction
Definesalarmtype
Selection of measurement input for alarm output. ( There must be one
of analog input modules in Module-1 socket.)
Alarmoffdelaytime
Configurationofanalogoutputmodule
Configurationoflogicinput
Functionselectionofanalogoutput
Configurationofanaloginputmodule
Selection of sensor type and scale for TC input module
Selection of sensor type and scale for PT-100 input module
It determines input type for Voltage/Current input moduleZ
It determines point position for display.
It defines minimum value for selectable dual point calibration.
It determines calibration type.
EMO-900,EMO-910,EMO-920
EMO-930
EMI-900
EMI-910,EMI-930,EMI-940,EMI-950
Alarmhysteresisvalue
Alarmondelaytime
It determines “ function for analog output modulere-transmission”
