Instructions
97

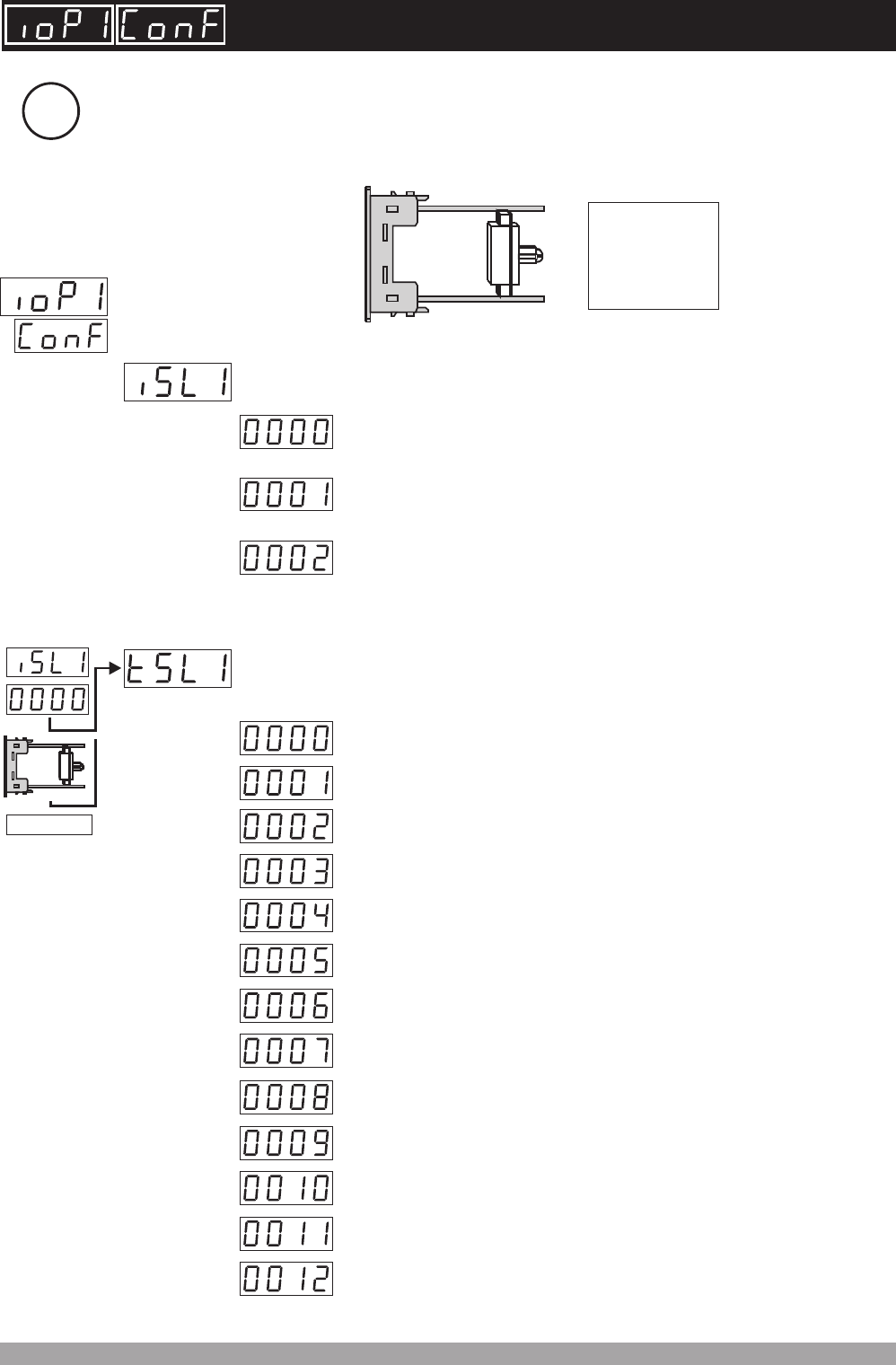

Configuration of analog input module in Module-1 socket
Selection of sensor type and scale for TC input module in Module-1
socket. It is active if input type of Module-1 is selected TC.
EMI-930
These parameters are active if EMI-910 (0 Current
Input) , EMI-930 (TC or 0...50mV Input), EMI-940 (PT-100 Input)
or EMI-950 (0...10V Input) module is plugged in Module-1
socket.
/4...20mAZ
Z
Z
EMI-910
EMI-930
EMI-940
EMI-950
TC input type selection. This must be selected if analog
input module in Module-1 socket is EMI-930.
PT-100 input type selection. This must be selected, if
analog input module in Module-1 socket is EMI-940.
ZVoltage / Current input type selection. This must be
selected if analog input module in Module-1 socket is EMI-
910 , EMI-930 or EMI - 950.
i
L (-100°C;850°C)or(-148°F;1562°F)
L (-100.0°C;850.0°C)or(-148.0°F;999.9°F)
J(-200°C;900°C)or(-328°F;1652°F)
K(-200°C;1300°C)or(-328°F;2372°F)
K(-199.9°C;999.9°C)or(-199.9°F;999.9°F)
R(0°C;1700°C)or(32°F;3092°F)
J(-199.9°C;900.0°C)or(-199.9°F;999.9°F)
R(0.0°C;999.9°C)or(32.0°F;999.9°F)
S (0°C;1700°C)or(32°F;3092°F)
S (0.0°C;999.9°C)or(32.0°F;999.9°F)
T -200 4 - 8 75( °C; 00°C)or( 32 °F; 2°F)
T( °C; °C)or( °F; °F)-199.9 400.0 -199.9 752.0
B (44°C;1800°C)or(111°F;3272°F)
