Instructions

95

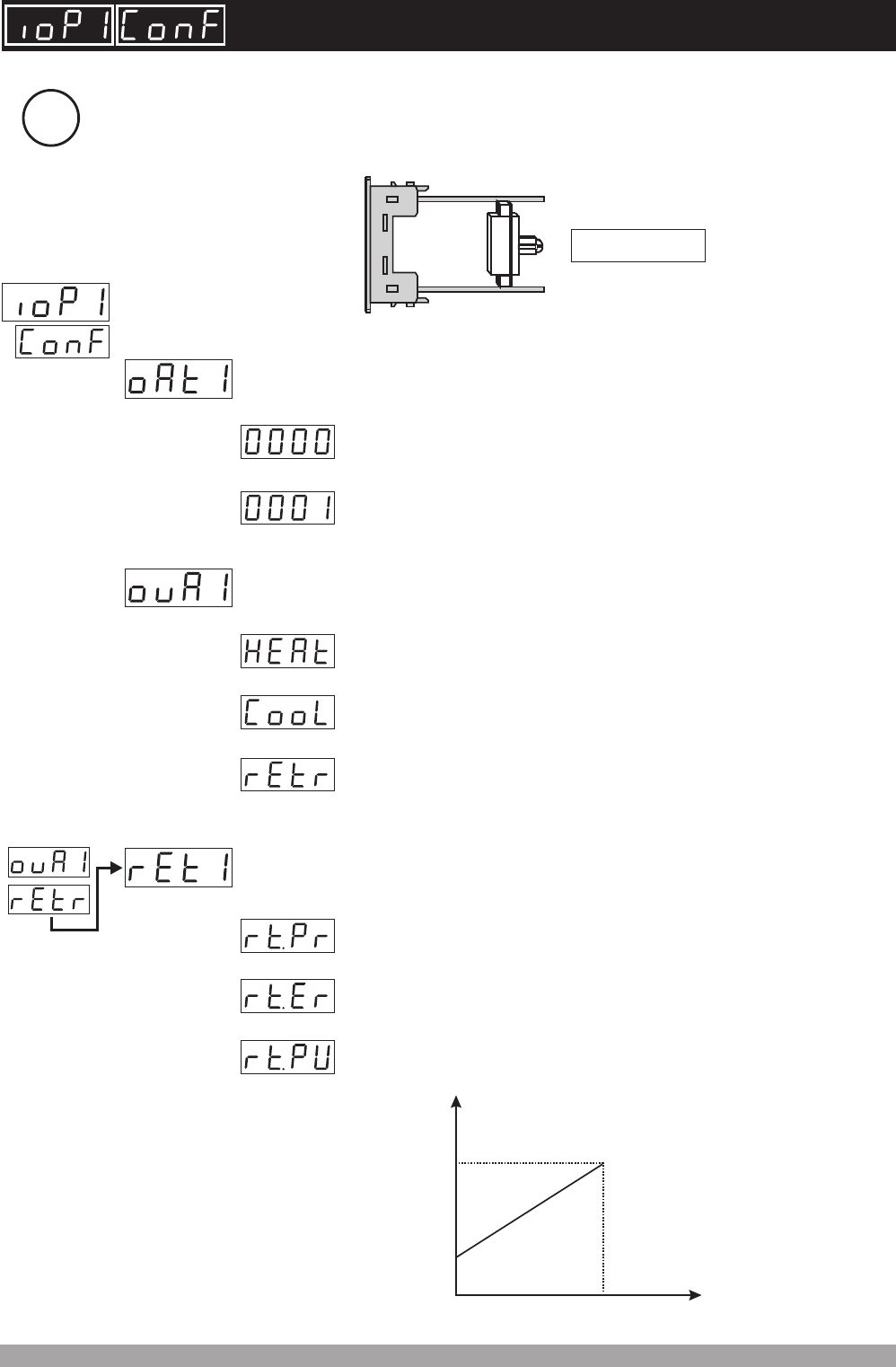

Configuration of analog output module in Module-1 socket.
FunctionselectionofanalogoutputmoduleinModule-1socket.
Defines “ (It is active if “Re-transmission” . re-transmission”function
function is selected for analog output module in Module-1 socket.
Analog output module in Module-1 socket is used for
heating
It retransmits Process value to analog output.
It retransmits difference between Process and Set value to
analog output.
It retransmits Set value to analog output.
Analog output module in Module-1 socket is used for
cooling.
Analog output module in Module-1 socket is used for
retransmission.
These parameters are active if EMO-930 (0/4...20 mA Current
Output) module is plugged in Module-1 socket.
Z
0...20mA output or 0...10V according to Section 5.2.5 is
selected.
Z
4...20mA output or 2...10VZ according to Section 5.2.5 is
selected.
EMO-930
i
Scale
0 20
mA
UPL
LOL
Re-transmission
