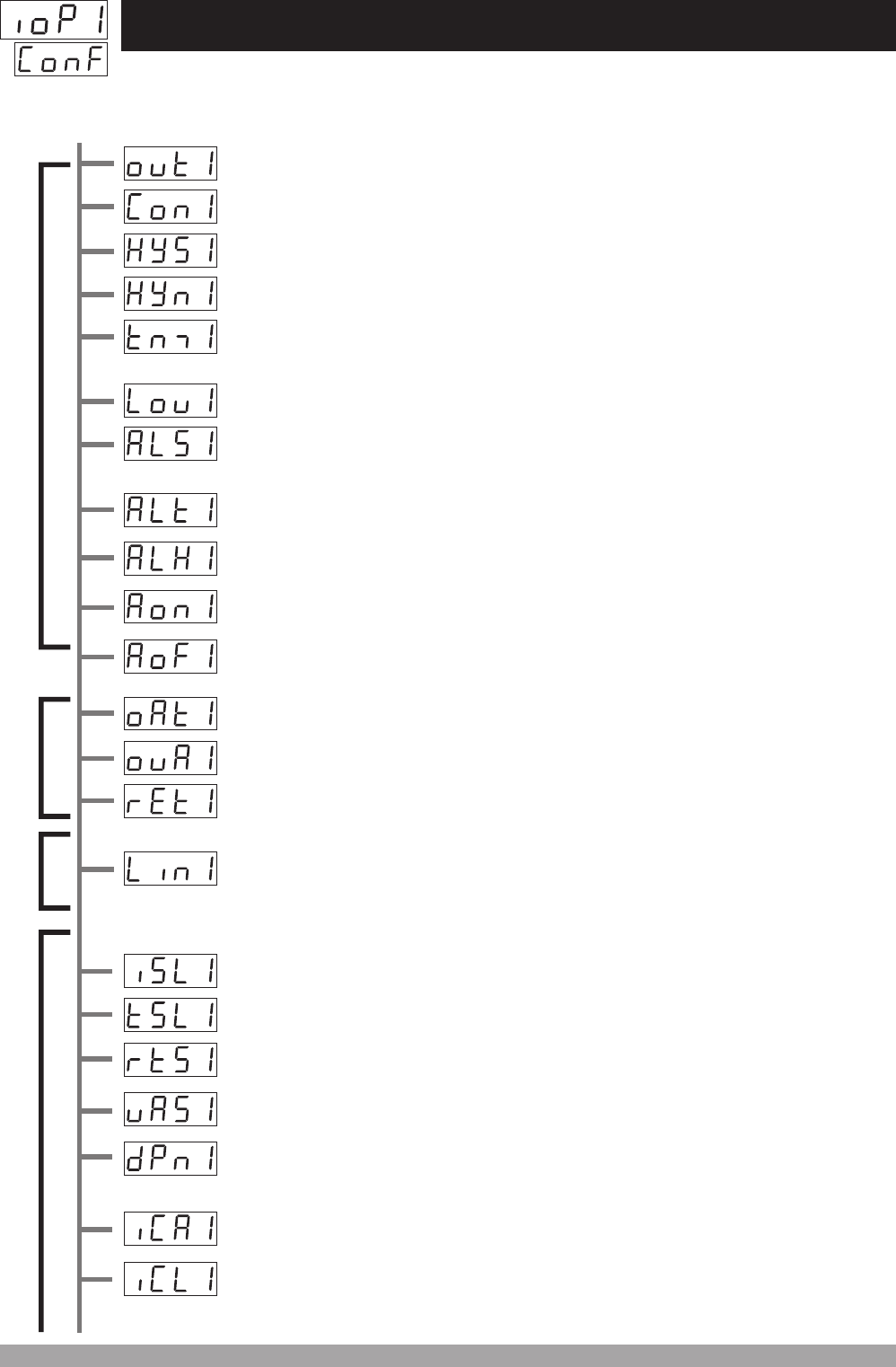

8.2.3MODULE-1ConfigurationParameters
Module-1 configuration parameters are arranged automatically by the device
according to the module type in Module-1 socket. These parameters are not
accessible if there is no module in Module-1 socket.
Definesoutputfunction.
Definescontrolalgorithmofoutputmodule.
Hysteresisvalueofoutputmodule
Definesoperationformofhysteresis
In ON/OFF operation, this time must be passed for the output to be
energised again.
Defineslogicoutputfunction
Definesalarmtype
Selection of measurement input for alarm output. ( There must be one
of the analog input modules in Module-2 socket.)
Alarm off delay time
Configurationofanalogoutputmodule
Configurationoflogicinput
Functionselectionofanalogoutput
It determines function for analog output module“re-transmission”
Configurationofanaloginputmodule
Selection of sensor type and scale for TC input module
Selection of sensor type and scale for PT-100 input module
It determines input type for voltage / Current input moduleZ
It determines point position for display.
It defines minimum value for selectable dual point calibration.
It determines calibration type.
EMO-900,EMO-910,EMO-920
EMO-930
EMI-900
EMI-910,EMI-930,EMI-940,EMI-950
Alarmhysteresisvalue
Alarm on delay time
