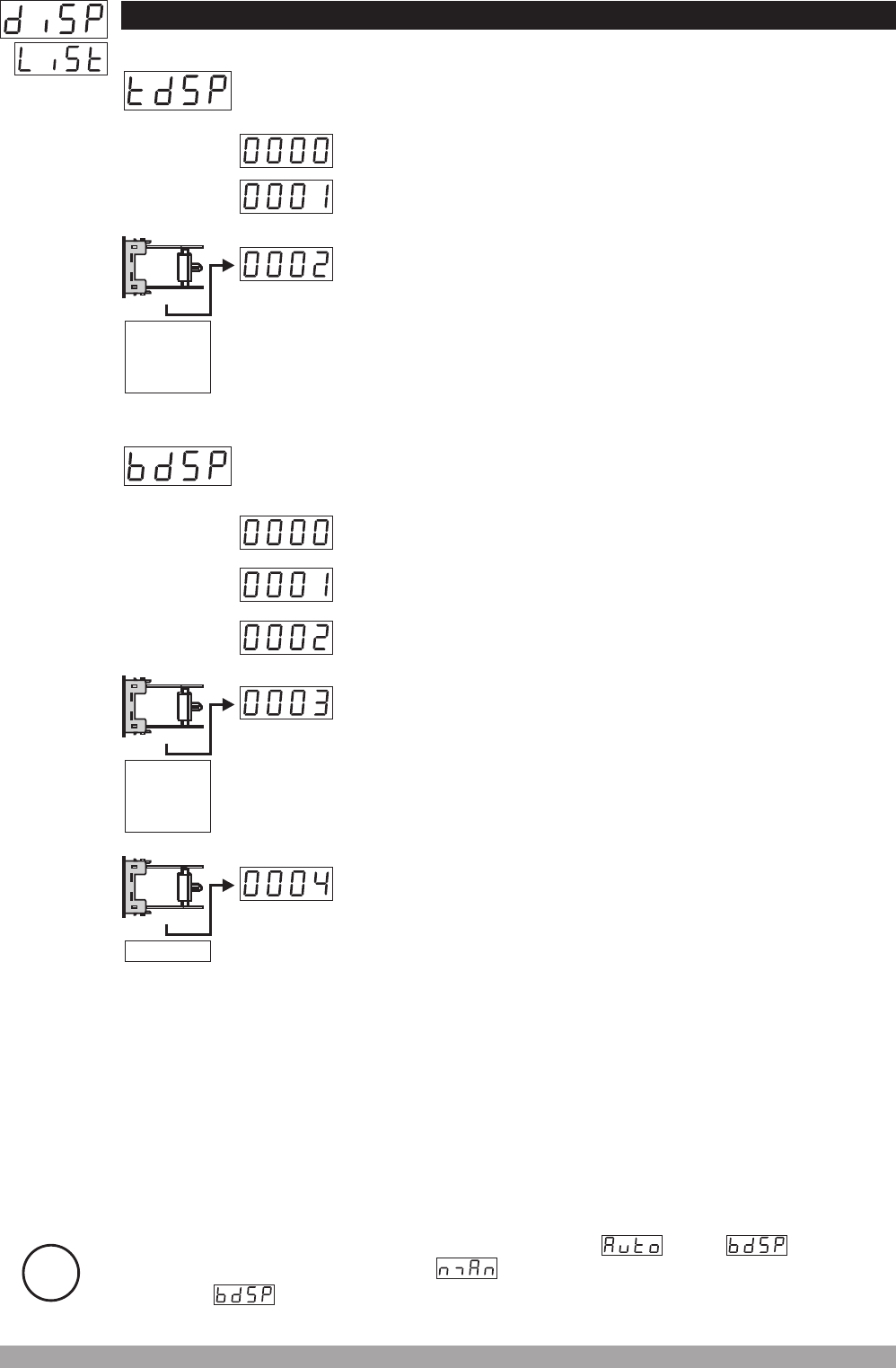

8.1.3FunctionSelectionforTopandBottomDisplay
It defines the function of the top display. This parameter determines
which value is shown in top display.
It defines the function of the bottom display. This parameter determines
which value is shown in bottom display.
Process value (PV) is shown in top display.
Process set value (SV) is shown in bottom display.
If one of the analog input modules is plugged in Module-1 or
Module-2 socket, measured value from this module input is
shown in top display.
Status of the Ramp/Soak function is shown in bottom
display.
Result of subtraction of process set value from process
value .(SV-PV) is shown in top display
%Output value that is applied to process control output is
shown in bottom display.
If one of the analog input modules is plugged in Module-1 or
Module-2 socket, measured value from this module input is
shown in top display.
In ‘Run List’ menu Section 8.1.2, if operation form is , then parameter
is considered. If operation form is , %output value is shown in bottom display
whatever parameter is.
EMI-910
EMI-930
EMI-940
EMI-950
EMI-910
EMI-930
EMI-940
EMI-950
EMI-920
If CT input module (EMI-920) is plugged in Module-1 or
Module-2 socket, measured value from this module input is
shown in bottom display.
