Instructions

66
If CT input module (EMI-920) is plugged in Module-1 or Module-2
socket and Module-1 alarm type parameter which is explained
in Section 8.2.5 is , parameter can be adjusted from 0.0
to 100.0A
V
V
If one of the analog input modules is plugged in Module-1 or Module-2
socket and measurement input selection parameter which is
explained in Section8.2.5 for Module-1 alarm output is ,
can be defined alarm set value for analog input module in Module-1 or
Module-2 socket.
Parameter can be adjusted from minimum set value of 2nd
sensor input and maximum set value of 2nd sensor input
Also point position of parameter and measured value from
analog input module (2nd sensor input) is the same.
In this conditions, alarm output operates according to 2nd sensor input
value and parameter.
EMO-900
EMO-910
EMO-920
MODULE-1
EMI-910
EMI-930
EMI-940
EMI-950

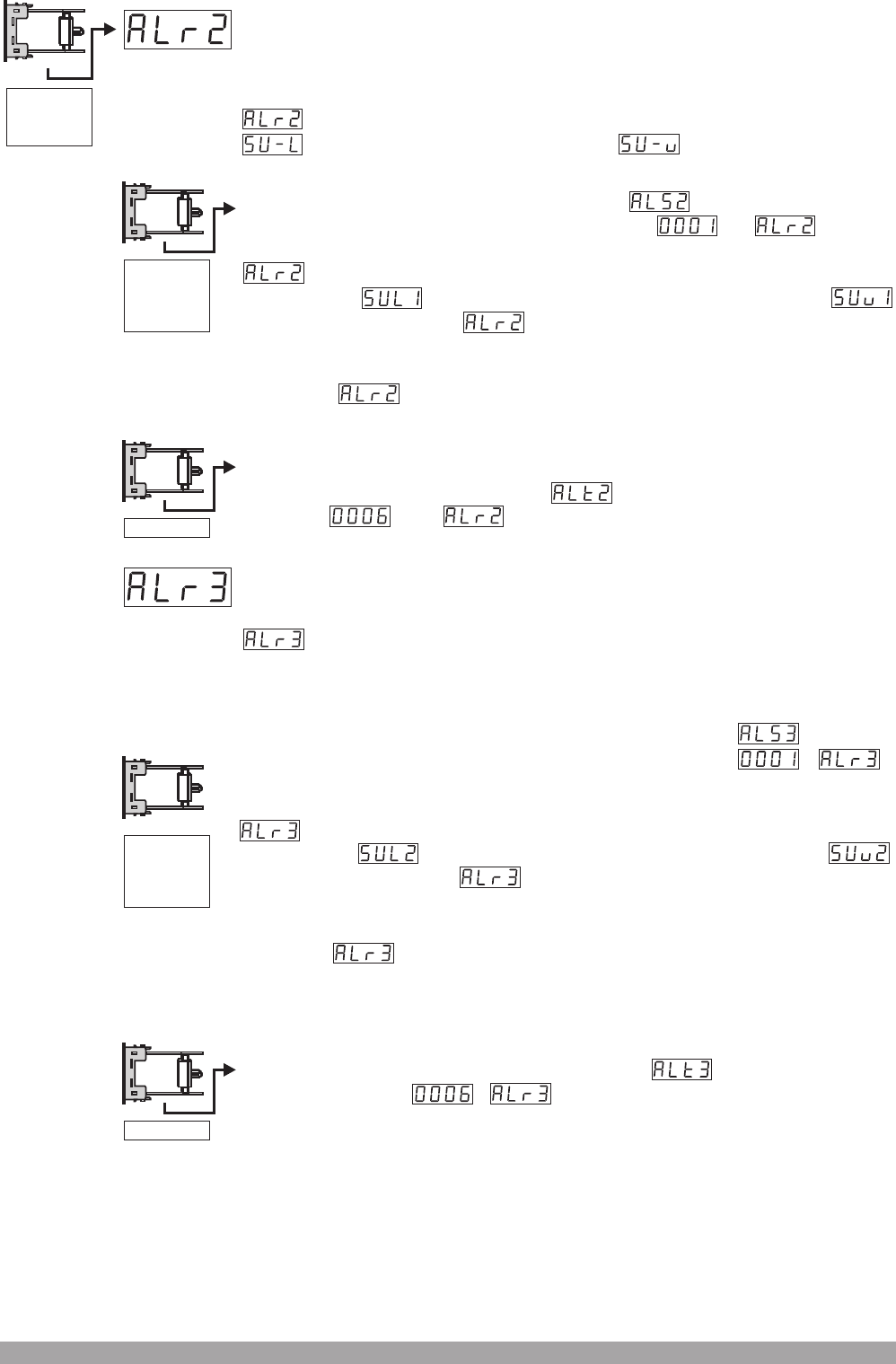

If OUT-3 relay output module is configured as alarm output, this
parameter defines the set value of the alarm output.
MODULE-1
EMI-920
EMI-910
EMI-930
EMI-940
EMI-950
MODULE-1
or
MODULE-2
EMI-920
MODULE-1
or
MODULE-2
If EMO-900 Relay, EMO-910 SSR Driver or EMO-920 Digital
(Transistor) output module is plugged in Module-2 socket and output is
configured as an alarm output, this parameter defines the set value of
the alarm output.
Setvaluecanbeadjustedfromminimumvalueofsetscale
tomaximumvalueofsetscale
If one of the analog input modules is plugged in Module-1 socket and
measurement input selection parameter which is explained in
Section 8.2.3 for Module-1 alarm output is , can be
defined alarm set value for analog input module in Module-2.
Parameter can be adjusted from minimum set value of 2nd
sensor input and maximum set value of 2nd sensor input
Also point position of parameter and measured value from
analog input module (2nd sensor input) is the same.
In this conditions, alarm output operates according to 2nd sensor input
value and parameter.
Set value of Heating FailureAlarm
If CT input module (EMI-920) is plugged in Module-1 socket and
Module-1 alarm type parameter which is explained in Section
8.2.3 is , parameter can be adjusted from 0.0 to
100.0A
V
V
Setvaluecanbeadjustedfromminimumvalueofsetscale
tomaximumvalueofsetscale
Set value of Heating FailureAlarm
