4.1InputModules

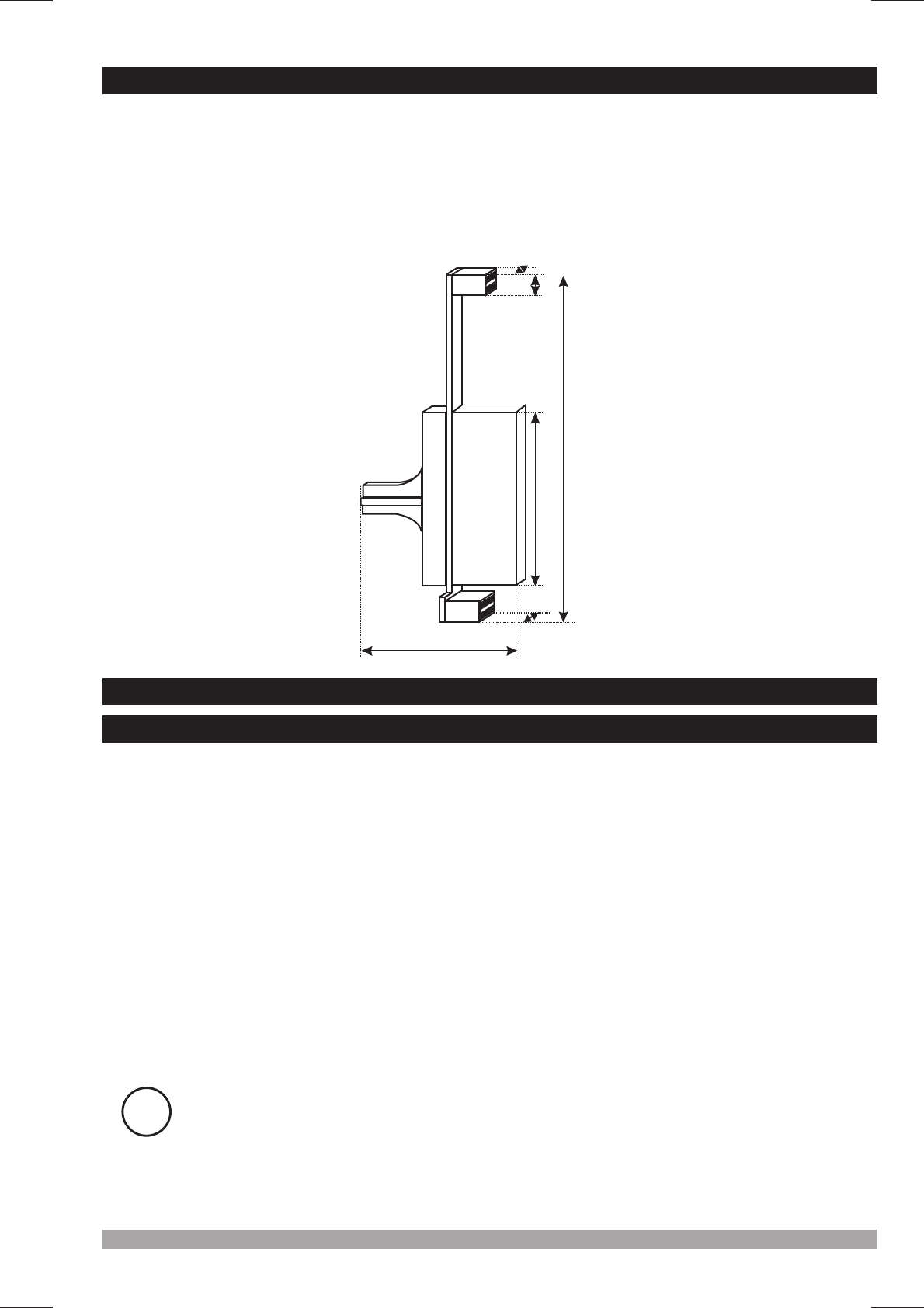

DimensionsofInput/OutputModules
4.1.1EMI DigitalInputModule-900
SpecificationsofEMI-900DigitalInputModule
EMI Digital input module can be installed to Module-1 or Module-2 socket for using the digital
input functions.
-900
ApplicationsofEMI-900DigitalInputModule
It is used to run, stop and pause ramp-soak functions in RAMP/SOAK applications.
It can be used to operate the process control output as AUTOMATIC/MANUAL, start the PID tune
operation and latch canceling.
Detailed information about functions of Digital Input Module functions are given
in parameters section. For using these functions EMI-900 Digital Input Module
must be installed to Module-1 or Module-2 socket.
ESM-9950 process controller is a modular product which is designed to operate with
additional analog and digital input/output units which user may need.
Two input/output modules can be plugged in the by the user. User
the product for different applications according to the system requirements with the input/output
modules which are described in this section.
device may configure
4.DefinitionsandSpecificationsofModules
Input Type :Normally Open Contact, NPN , PNP , Voltage Input ( 2 Volt and below 2 Volt is
Logic “0”, 4 Volt and above 4 Volt is Logic “1”. Maximum 30V can be applied)
Dimensions :18x75.2x41.4mm
Input Resistance : 2K2 W .
