If there is CT input module (EMI-920) in Module-1 or Module-2
socket and alarm type parameter is , then it can be
adjusted from 0.0 to 20.0A
V
V
If is or there is no analog input module (2nd sensor input )
in Module-1 or Module-2 socket, then it can be adjusted 0% to 50% of
process input scale ( - )
118

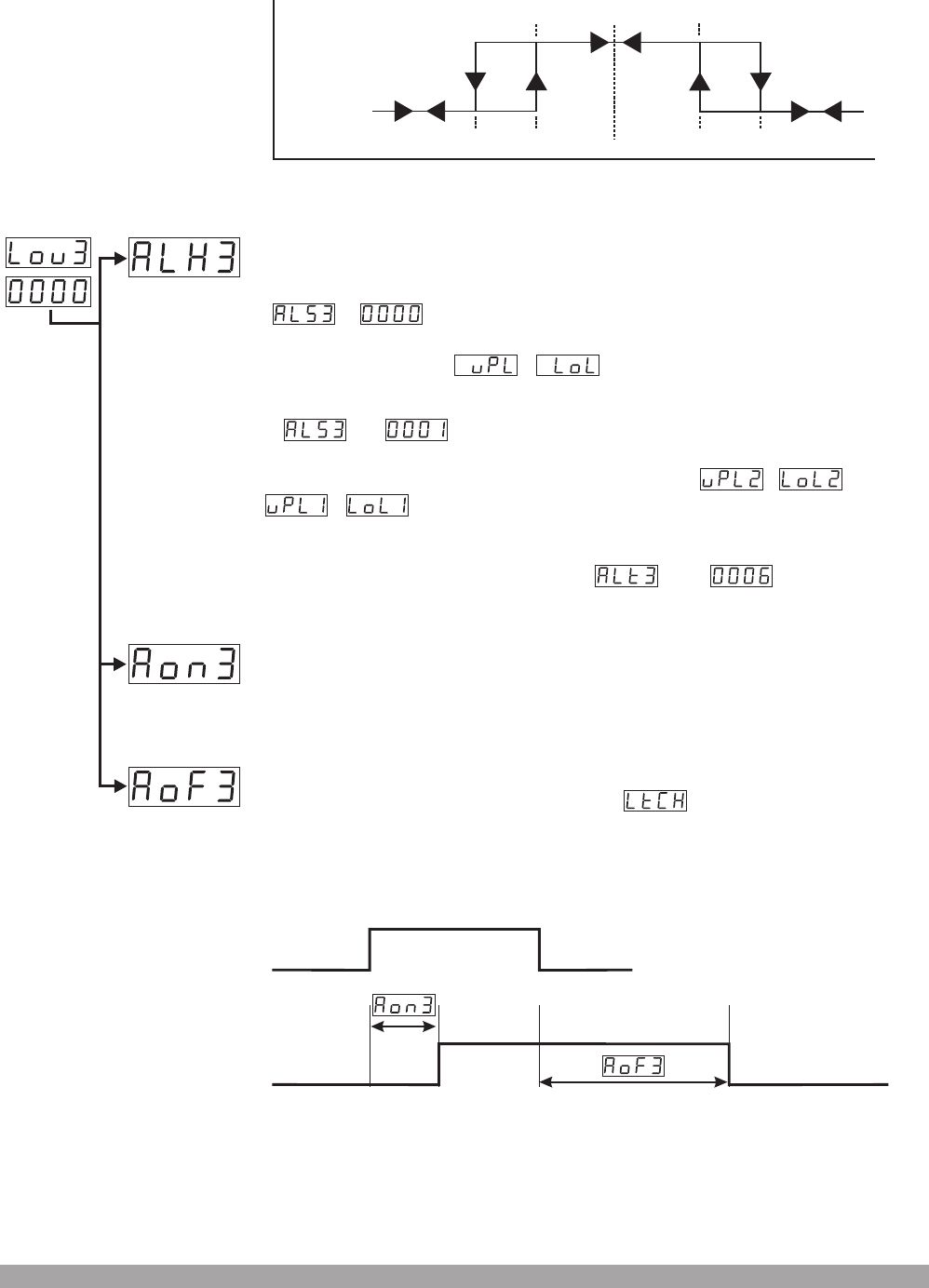

Alarm off delay time. It can be adjusted from 0000 to 9998 seconds.
When the value is greater than 9998, is seen on the display. It
means alarm latching output is selected. It is active if logic output
function of Output-3 is alarm output.
HYS
ProcessSet- AlarmSet
HYS
ON
OFF
Process
Set
ProcessSet+ AlarmSet
Alarm
Output
ProcessValue
Deviation Range Alarm
Alarm
Status
Alarm
Output
On
Delay
OFF
Delay
If is and there is one of thr analog input module ( 2nd
sensor input) in Module-1 or Module-2 socket, then it can be adjusted
from 0% to 50% of analog input module scale ( - ) or
( - )
Alarm- 3 hysteresis value. It is active if logic output function of Output-3
is alarm output.
Alarm on delay time. It can be adjusted from 0000 to 9999 seconds. It is
active if logic output function of Module-1 is alarm output.
