Instructions

116

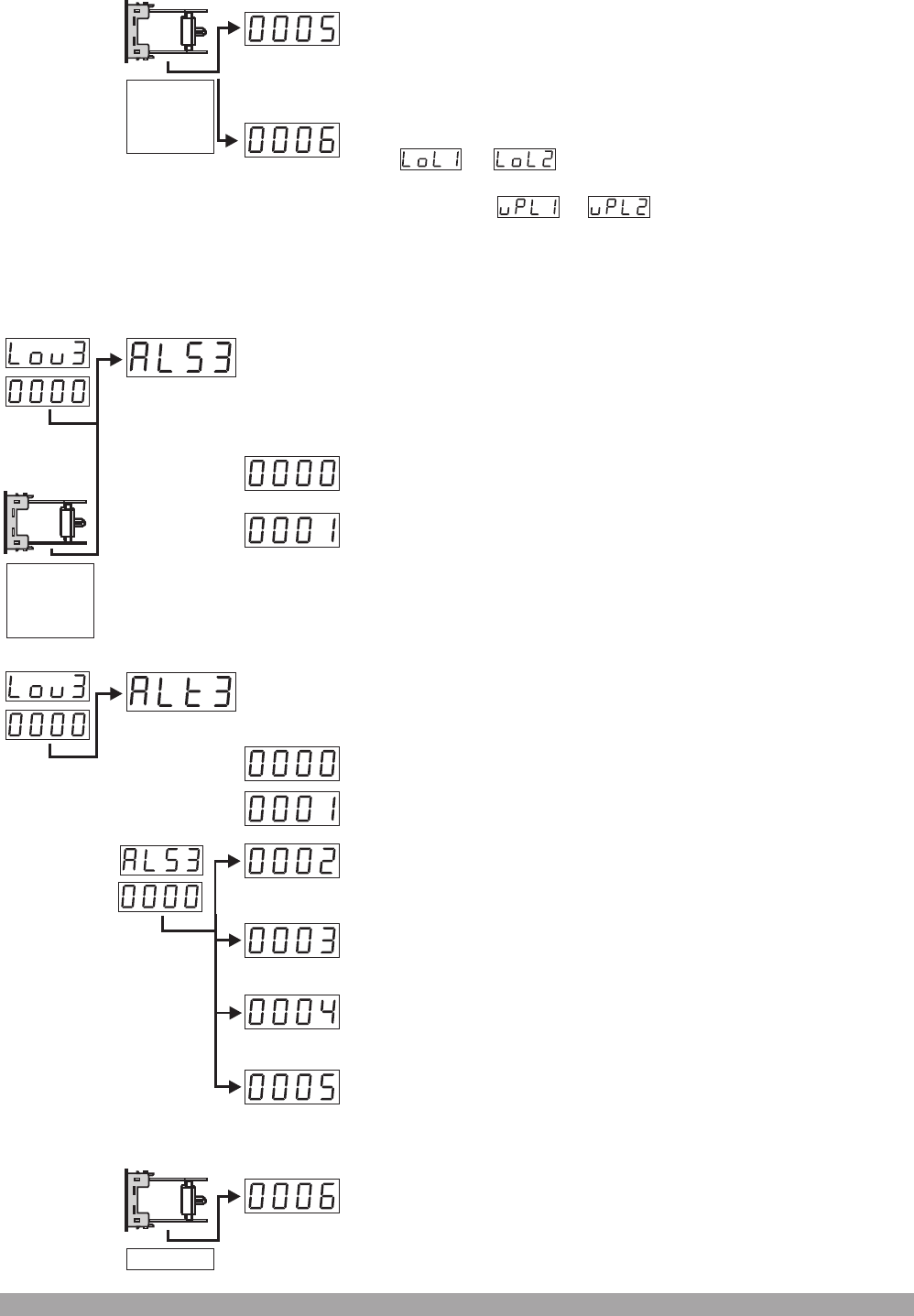

Heater failure alarm. It is active if CT input module is
plugged in Module-1 or Module-2 socket.
V
It determines alarm type. It is active if logic output function of Output-3
is alarm output.
Alarm output runs according to the process input.
Process high alarm
Process low alarm
Alarm output runs according to the analog input module
(2nd sensor input) in Module-1 or Module-2 socket.
Deviation high alarm. It is active when alarm output runs
according to the process input.
Deviation low alarm. It is active when alarm output runs
according to the process input.
Deviation band alarm. It is active when alarm output runs
according to the process input.
Deviation range alarm. It is active when alarm output runs
according to the process input.
EMI-910
EMI-930
EMI-940
EMI-950
MODULE-1
or
MODULE-2
EMI-920
MODULE-1
or
MODULE-2
EMI-910
EMI-930
EMI-940
EMI-950
If process value is less than minimum value of operating
scale or for analog input module in Module-1
or Module-2 socket or greater than maximum value of
operating scale or for analog input module in
Module-1 or Module-2 socket, process output becomes
active.(This parameter is visible if one of the analog input
modules is plugged in Module-1 or Module-2 socket)
MODULE-1
or
MODULE-2
Sensor break alarm output for analog input module in
Module-1or Module-2 socket. ( It is visible if one of the
analog input modules is plugged in Module-1 or Module-2
socket )
Measurement input selection for Output-3 alarm output. This
parameter is visible if Logic output function of Output-3 is Alarm output
and one of the analog input modules is plugged in Module-1 or Module-
2 socket
