MODULE-1
EMI-910
EMI-930
EMI-940
EMI-950
MODULE-1
EMI-910
EMI-930
EMI-940
EMI-950

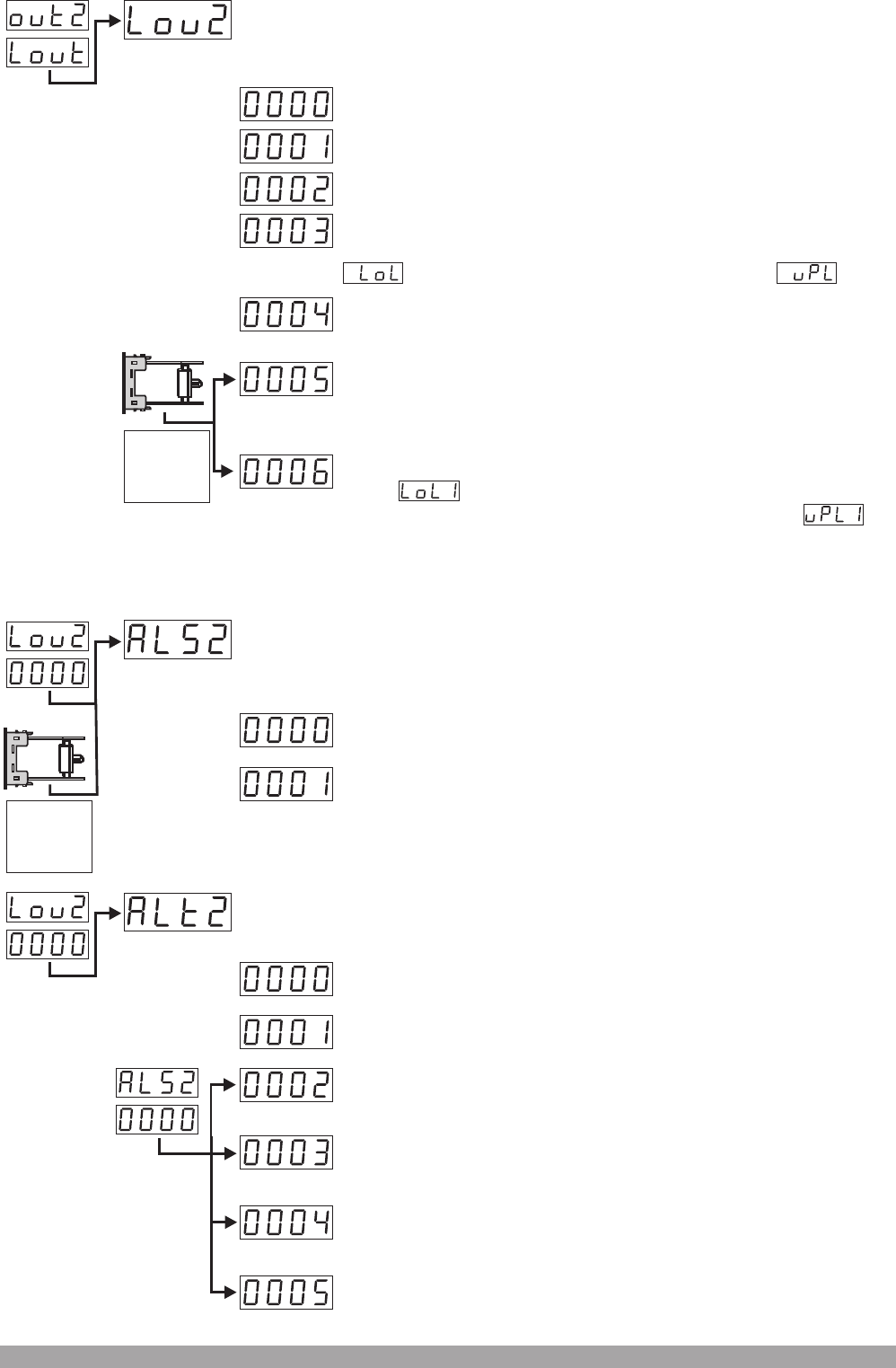

It determines logic output function of output module in Module-2
socket. It is active if output function of Module-2 is Lout (Logic Output)
Alarm output
Sensor break alarm output
Manual / Automatic data output
Output indicates that Ramp/Soak function has finished
Output is active when the process value is out of the band
which is defined with minimum value of operating scale
and maximum value of operating scale
Sensor break alarm output for analog input module in
Module-1 socket. ( It is visible if one of analog input modules
is plugged in Module-1 socket )
Alarm output runs according to the process input.
Alarm output runs according to the analog input module
(2nd sensor input) in Module-1 socket.
It determines alarm type. It is active if logic output function of Module-2
is adjusted alarm output.
Process high alarm
Deviation high alarm. It is active when alarm output runs
according to the process input.
Deviation low alarm. It is active when alarm output runs
according to the process input.
Deviation band alarm. It is active when alarm output runs
according to the process input.
Deviation range alarm. It is active when alarm output runs
according to the process input.
Process low alarm
Ifthereisno
analog
inputmodule
inModule-1
socket
Measurement input selection for Module-2 alarm output. This
parameter is visible if Logic output function of Module-2 is Alarm output
and one of the analog input modules is plugged in Module-1 socket
If process value is less than minimum value of operating
scale for analog input module in Module-1 socket or
greater than maximum value of operating scale for
analog input module in Module-1 socket, process output
becomes active.(This parameter is visible if one of the
analog input modules is plugged in Module-1 socket)
