User manual

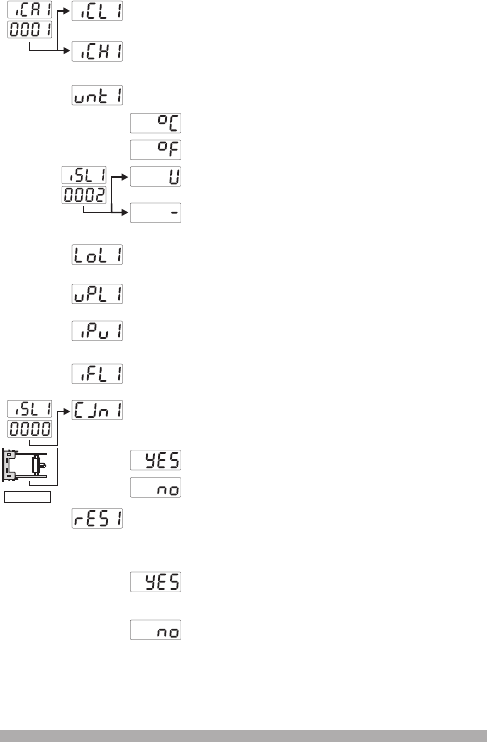

Display offset for value in analogue input module. It can be adjusted
from -10% to +10% of scale. This value is added to the process value.
It is filter time for input signal. It can be adjusted from 0.0 to 900.0
seconds.
99
It decides if cold junction compensation is active or not for TC input
module in Module-1 socket. It is active if process input of Module-1 is
TC input.
Cold junction compensation is active
Cold junction compensation is not active
EMI-430
It determines if the measured value from analogue input module in
Module-1 socket is used as Remote Set or not. This parameter is
visible if point position and unit parameters are same for process input
and analogue input module.
Measured value from analogue input module in Module-1
socket is used as process set value. User defined process
set value is not considered.
Measured value from analogue input module in Module-1
socket is not used as process set value. User defined
process set value is considered.
Unit selection
Unit is °C.
Unit is °F.
Unit is U. It is active if input type of Module-1 is selected
ZVoltage / Current.
No unit. It is active if input type of Module-1 is selected
Voltage / Current.Z
Defines minimum value for selectable dual point calibration. It is active
if Voltage / Current is selected. It can be adjusted from -Z 1999 to
9999.
Defines maximum value for selectable dual point calibration. It is active
if Voltage / Current is selected. It can be adjusted from -Z 1999 to
9999.
Minimum value of operating scale (Low Limit). It can be changed
according to analogue input type and scale.
Maximum value of operating scale (High Limit). It can be changed
according to analogue input type and scale.
