User manual

98

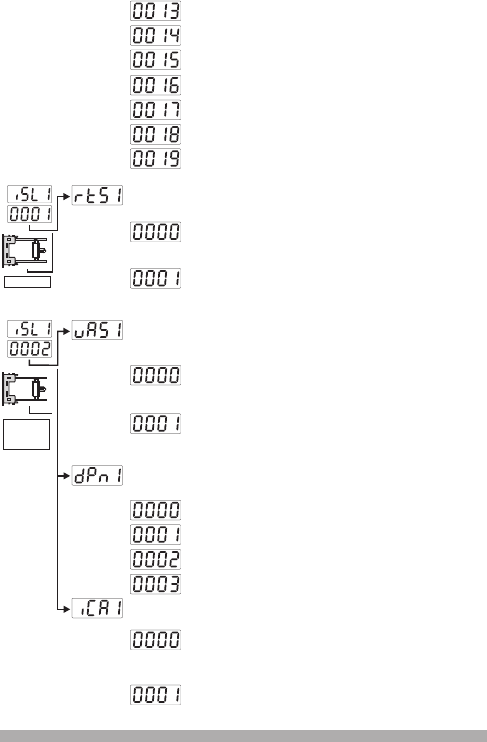

Selection of sensor type and scale for Pt-100 input module in Module-1
socket. It is active if input type of Module-1 is selected Pt-100.
Sensor type : PT-100
Scale: -200°C to 650°C (If unit is °C)
Scale: -328°F to 1202°F (If unit is °F)
Sensor type : PT-100
Scale: -199.9°C to 650.0°C (If unit is °C)
Scale: -199.9°F to 999.9°F (If unit is°F)
EMI-440
No point
00.00
0.000
000.0
Fixed dual point calibration is performed. Maximum and
minimum value of calibration can not be adjusted. Minimum
value of calibration is -1999 and maximum value of
calibration is 9999.
Selectable dual point calibration is performed.
It determines point position for display. It is active if input type of
Module-1 is selected Voltage / Current.Z
It is active if Voltage / Current input is selected for Module-1. It
determines calibration type.
Z
EMI-410
EMI-430
EMI-450
It determines input type for Voltage/Current input module in
Module-1 socket. (It is active if input type of Module-1 is selected
Z
Voltage /Current.)Z
If Module-1 is EMI-410 ; 0 ... 20mA input is selected.Z
If Module-1 is EMI-430 ; 0 ... 50mV input is selected.
If Module-1 is EMI-450 ; 0 ... 10V input is selected.
Z
Z
If Module-1 is EMI-410 ; 4 ... 20mA input is selected.
If Module-1 is EMI-430 ;10 ... 50mV input is selected.
If Module-1 is EMI-450 ; 2 ... 10V input is selected.
Z
Z
Z
C (0.0°C;999.9°C) or (32.0°F;999.9°F)
B (44.0°C;999.9°C) or (111.0°F ; 999.9°F)
E 15 7 23 129 F)(- 0°C; 00°C) or (- 8°F; 2°
E ( 150.0°C;7 .0°C) or ( 199.9°F;999.9°F)-00-
N ( 200°C;13 °C) or ( 328°F;2372°F)-00-
N (-199.9°C;999.9°C) or (-199.9°F;999.9°F)
C (0°C;2300°C) or (32°F;3261°F)
