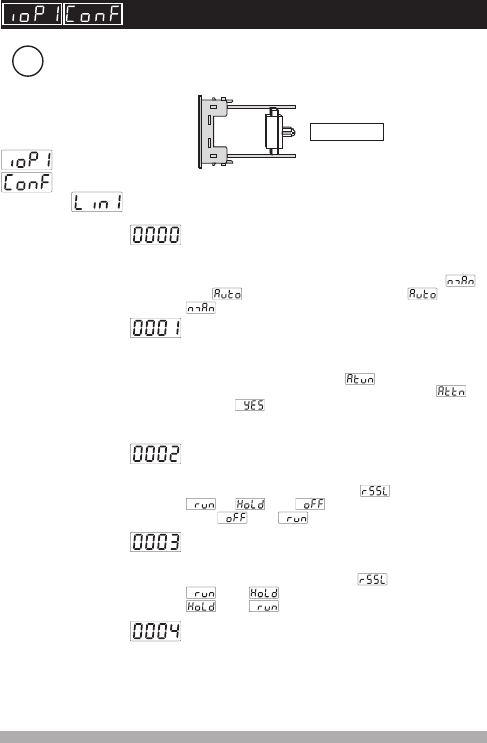

Configuration of digital input in Module-1 socket.
Ramp&Soak, Start / Stop input.
These parameters are active if EMI-400 (Digital Input) module is
plugged in Module-1 socket.
Manual /Automatic selection input
Auto Tune ( Limit Cycle Tuning) Start/Stop input.
It is used to start or stop the Auto Tune operation.
If input is being active while operation does not
perform, automatic tune selection parameter is
selected and then Auto Tune operation starts to run.
If input is being active while Atun operation performs, Auto
Tune operation is stopped.
Ramp&Soak, Start / Hold input.
When the logic input is triggered ;
If Ramp / Soak control parameter is
or then is selected
If it is then is selected.
When the logic input is triggered ;
If Ramp / Soak control parameter is
then is selected
then is selected
When the logic input is triggered ;
When the logic input is triggered ;
Alarm Latch Canceling.
When the logic input is triggered ;
If there is a latching alarm output and alarm condition is not
active, latching is canceled.
EMI-400
In PID Tune and selection of operation form menu (
(Auto) is ,
then is selected, ifAuto parameter is , then
is selected.
