User manual

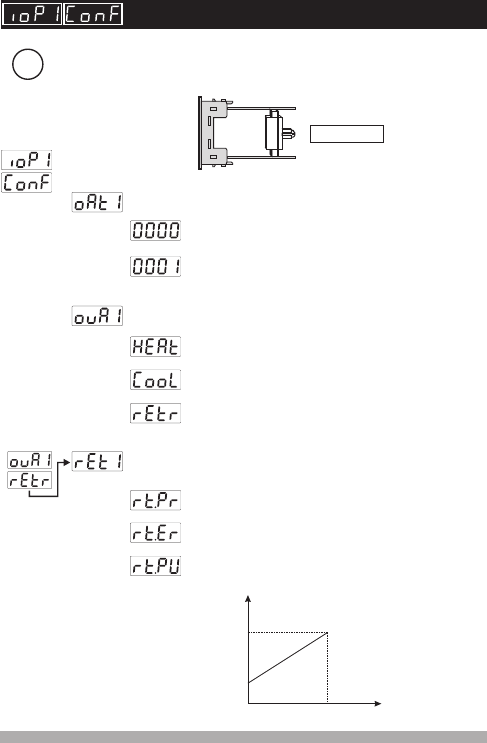

Configuration of analogue output module in Module-1 socket.
Function selection of analogue output module in Module-1 socket.
Defines “ (It is active if “Re-transmission” . re-transmission”function
function is selected for analogue output module in Module-1 socket.
Analogue output module in Module-1 socket is used for
heating
It retransmits Process value to analogue output.
It retransmits difference between Process and Set value to
analogue output.
It retransmits Set value to analogue output.
Analogue output module in Module-1 socket is used for
cooling.
Analogue output module in Module-1 socket is used for
retransmission.
95
These parameters are active if EMO-430 (0/4...20 mA Current
Output) module is plugged in Module-1 socket.
Z
0...20mA output or 0...10V according to Section 5.2.5 is
selected.
Z
4...20mA output or 2...10VZ according to Section 5.2.5 is
selected.
EMO-430
i
Scale
020
mA
UPL
LOL
Re-transmission
