Alarm output
Sensor break alarm output
Manual /Automatic data output

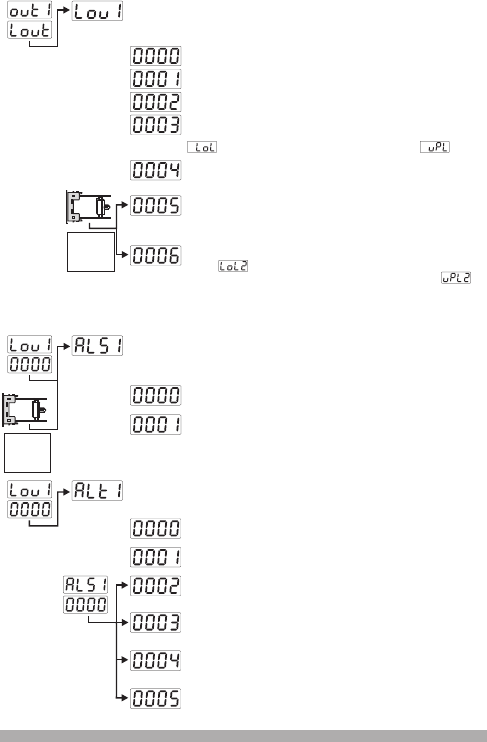

It determines logic output function of output module in Module-1
socket. It is active if output function of Module-1 is Lout (Logic Output)
Output indicates that Ramp/Soak function has finished
Measurement input selection for Module-1 alarm output. This
parameter is visible if Logic output function of Module-1 is Alarm output
and one of the analogue input modules is plugged in Module-2 socket
Alarm output runs according to the process input.
Alarm output runs according to the analogue input module
(2nd sensor input) in Module-2 socket.
It determines alarm type. It is active if logic output function of Module-1
is an alarm output.
Process high alarm
Deviation high alarm. It is active when alarm output runs
according to the process input.
Deviation low alarm. It is active when alarm output runs
according to the process input.
Deviation band alarm. It is active when alarm output runs
according to the process input.
Deviation range alarm. It is active when alarm output runs
according to the process input.
Process low alarm
MODULE-2
EMI-410
EMI-430
EMI-440
EMI-450
Output is active when the process value is out of the band
which is defined with minimum value of operating scale
and maximum value of operating scale
If there is no
analogue
input module
in Module-2
socket
Sensor break alarm output for analogue input module in
Module-2 socket. ( It is visible if one of analogue input
modules is plugged in Module-2 socket )
MODULE-2
EMI-410
EMI-430
EMI-440
EMI-450
If process value is less than minimum value of operating
scale for analogue input module in Module-2 socket
or greater than maximum value of operating scale for
analogue input module in Module-2 socket, process output
becomes active.(This parameter is visible if one of the
analogue input modules is plugged in Module-2 socket)
