8.2.3 MODULE-1 Configuration Parameters
89

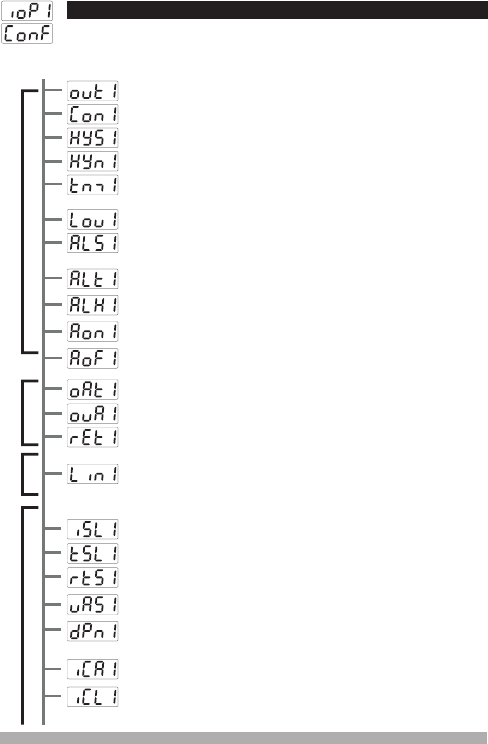

Module-1 configuration parameters are arranged automatically by the device
according to the module type in Module-1 socket. These parameters are not
accessible if there is no module in Module-1 socket.
Defines output function.
Defines control algorithm of output module.
Hysteresis value of output module
Defines operation form of hysteresis
In ON/OFF operation, this time must be passed for the output to be
energised again.
Defines logic output function
Defines alarm type
Selection of measurement input for alarm output. ( There must be one
of analogue input modules in Module-2 socket.)
Alarm off delay time
Configuration of analogue output module
Configuration of logic input
Function selection of analogue output
It determines function for analogue output modulere-transmission”
Configuration of analogue input module
Selection of sensor type and scale for TC input module
Selection of sensor type and scale for PT-100 input module
It determines input type for Voltage / Current input moduleZ
It determines point position for display.
It defines minimum value for selectable dual point calibration.
It determines calibration type.
EMO-400, EMO-410, EMO-420
EMO-430
EMI-400
EMI-410, EMI-430, EMI-440 , EMI-450
Alarm hysteresis value
Alarm on delay time
