8.2.1 Process Input Type and Relevant Parameters with Process Input

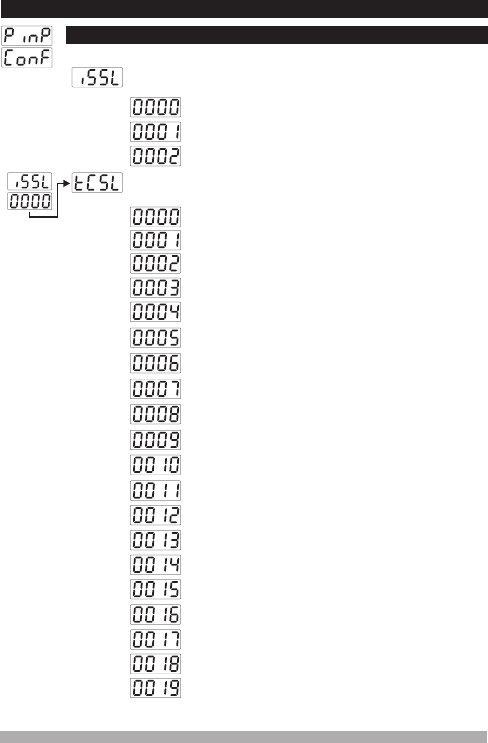

Defines the process input type.
Defines type and scale of the thermocouple for TC input. It is active if
TC input type is selected.
TC input type selection
RTD input type selection
8.2 Technician Parameters
78
Voltage/Current input type selectionZ .
C (0.0°C;999.9°C) or (32.0°F;999.9°F)
L (-100°C;850°C) or (-148°F;1562°F)
L (-100.0°C;850.0°C) or (-148.0°F;999.9°F)
J (-200°C;900°C) or (-328°F;1652°F)
K (-200°C;1300°C) or (-328°F;2372°F)
K (-199.9°C;999.9°C) or (-199.9°F;999.9°F)
R (0°C;1700°C) or (32°F;3092°F)
J (-199.9°C;900.0°C) or (-199.9°F;999.9°F)
R (0.0°C;999.9°C) or (32.0°F;999.9°F)
S (0°C;1700°C) or (32°F;3092°F)
S (0.0°C;999.9°C) or (32.0°F;999.9°F)
T -200 4 - 8 75( °C; 00°C) or ( 32 °F; 2°F)
T ( °C; °C) or ( °F; °F)-199.9 400.0 -199.9 752.0
B (44°C;1800°C) or (111°F;3272°F)
B (44.0°C;999.9°C) or (111.0°F ; 999.9°F)
E 15 7 23 129 F)(- 0°C; 00°C) or (- 8°F; 2°
E ( 150.0°C;7 .0°C) or ( 199.9°F;999.9°F)-00-
N ( 200°C;13 °C) or ( 328°F;2372°F)-00-
N (-199.9°C;999.9°C) or (-199.9°F;999.9°F)
C (0°C;2300°C) or (32°F;3261°F)
