8.1.4 RAMP/SOAK Function and Step SET ValuesConfiguration of
75
1.program 1-4 steps

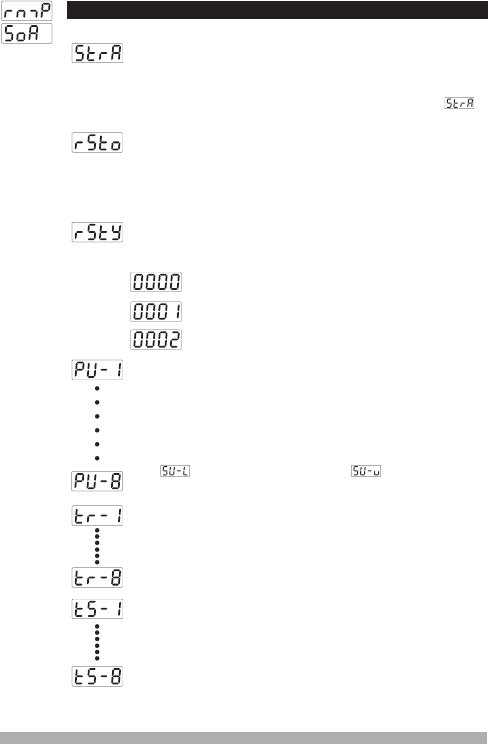

Ramp/Soak program step selection parameter.
One program with 8 steps or two different programs with 4 steps can be
defined.
Ramp / Soak Tolerance parameter. It can be adjusted from 0% to 50
Ramp/Soak operation, if process value is out of the
tolerance that is defined with this parameter, then time is stopped. To
continue to count the Ramp/Soak time, process value must be
between tolerances which are determined with this parameter.
If parameter is 0, this function is not active.
%
of scale. In
Steps between 1-8 is used as one program.
2.program 5-8 steps
Ramp time for Ramp/Soak
Process value reaches to step set values at the end of the time that are
defined in these parameters.
It can be adjusted 0 to 99 hours 59 minutes
Soak time for Ramp/Soak
It can be adjusted 0 to 99 hours 59 minutes.
Process value is constant in step set value for time that are defined in
these parameters.
Soft-Start parameter.
When the power is applied to the device, process value reaches to the
set value at the end of this time. It can be adjusted from 0 to 99 hours 59
minutes.
When the power is applied to the device, if this parameter is 0,
Ramp function is not active.
Ramp/Soak step set value.
For ramp operation ; process value reaches to step set values that are
defined with these parameters at the end of the time that are defined in
ramp time parameters.
For soak operation ; process value is constant in step set value that are
defined in these parameters for time that are defined in soak time
parameters.
Ramp/Soak step set values can be adjusted from minimum value of set
scale to maximum value of set scale
