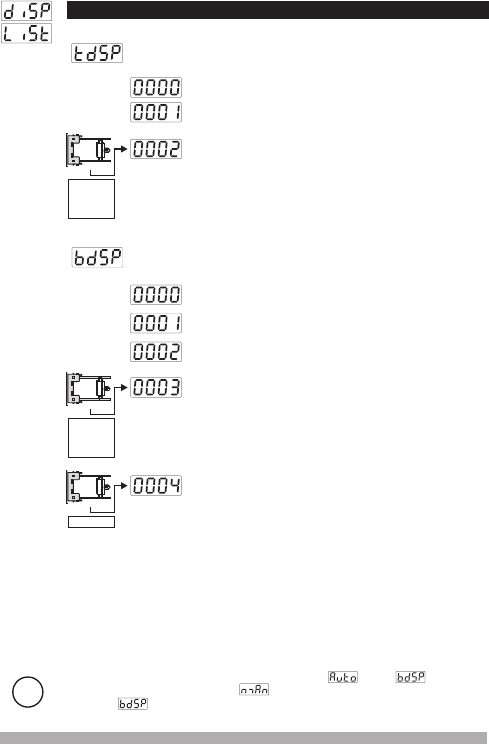

8.1.3 Function Selection for Top and Bottom Display

It defines the function of the top display. This parameter determines

which value is shown in top display.

It defines the function of the bottom display. This parameter determines

which value is shown in bottom display.

Process value (PV) is shown in top display.

Process set value (SV) is shown in bottom display.

If one of the analogue input modules is plugged in Module-1

or Module-2 socket, measured value from this module input

is shown in top display.

Status of the Ramp/Soak function is shown in bottom

display.

Difference between process set value and process value

.(SV-PV) is shown in top display

%Output value that is applied to process control output is

shown in bottom display.

If one of the analogue input modules is plugged in Module-1

or Module-2 socket, measured value from this module input

is shown in top display.

In ‘Run List’ menu Section 8.1.2, if operation form is , then parameter

is considered. If operation form is , %output value is shown in bottom display

whatever parameter is.

EMI-410

EMI-430

EMI-440

EMI-450

EMI-410

EMI-430

EMI-440

EMI-450

EMI-420

If CT input module (EMI-420) is plugged in Module-1 or

Module-2 socket, measured value from this module input is

shown in bottom display.
