User manual

71

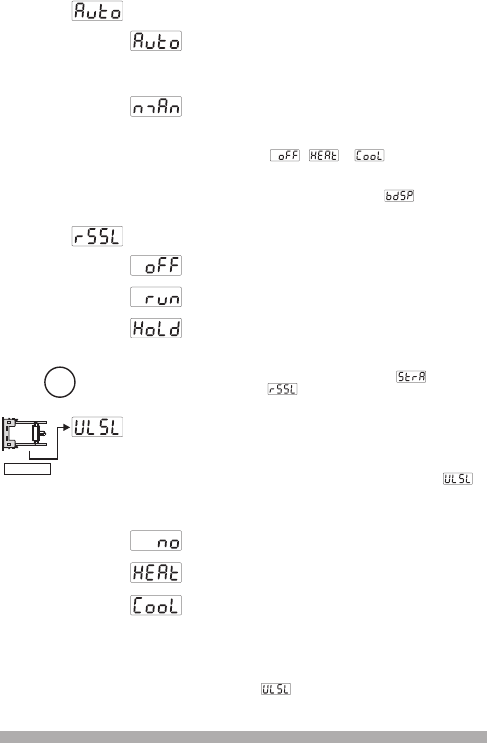

RAMP / SOAK CONTROL
Ramp / Soak function is not active.
Ramp / Soak function is active
Ramp / Soak function is paused.
Process set value becomes constant at last value and
ramp or soak time does not take into consideration.
OPERATION FORM SELECTION
Automatic Operation (Close-Loop Control)
Device controls the process outputs by calculating the
%output value automatically. (If there is a PID or ON/OFF
output)
MOTORIZED VALVE CONTROL
Motorized valve control is not active.
Motorized valve runs with heating PID
Motorized valve runs with cooling PID
It defines motorized valve control form. Module-1 output operates for
opening the valve, Output-3 operates for closing the valve.
If Module-1 is relay output, motorized valve control parameter is
shown even motorized valve control is not used. If motorized valve
control is used, Module-2 output can not be used as PID.
Motorized valve control parameter must not be changed, if there is an
electrical wiring.
EMO-400
MODULE-1
c
Manual Operation (Open-Loop Control)
In PID control formed systems, user can adjust %output
value with increment and decrement buttons.
In ON/OFF control formed systems, user can adjust
%output value , or with decrement and
increment buttons.
If manual operation form is selected, %output value is
shown on bottom display whatever parameter is
selected.
As explained in Section 8.1.4, when Soft-Start parameter is active,
Ramp / Soak control parameter has no effect.
i
