User manual

If CT input module (EMI-420) is plugged in Module-1 or Module-2
socket and Module-1 alarm type parameter which is explained
in Section 8.2.3 is , parameter can be adjusted from 0.0
to 100.0A
V
V
66
EMO-400
EMO-410
EMO-420
MODULE-1
EMI-410
EMI-430
EMI-440
EMI-450

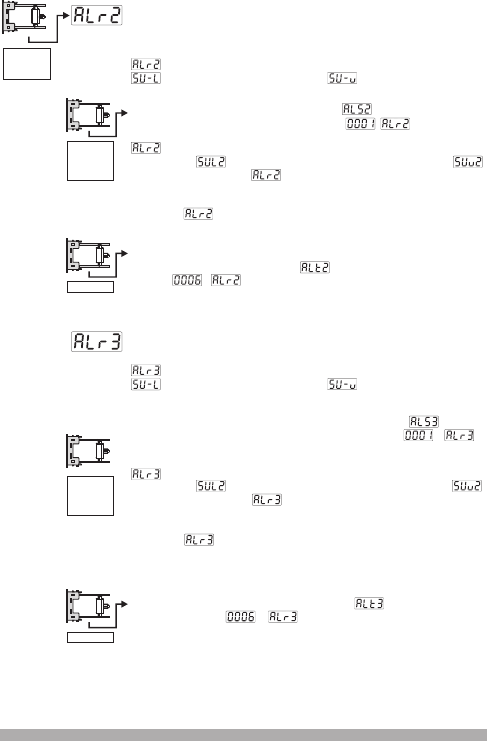

If OUT-3 relay output module is configured as alarm output, this
parameter defines the set value of the alarm output.
MODULE-1
EMI-420
EMI-410
EMI-430
EMI-440
EMI-450
MODULE-1
or
MODULE-2
EMI-420
MODULE-1
or
MODULE-2
If EMO-400 Relay, EMO-410 SSR Driver or EMO-420 Digital
(Transistor) output module is plugged in Module-2 socket and output is
configured as an alarm output, this parameter defines the set value of
the alarm output.
Set value can be adjusted from minimum value of set scale
to maximum value of set scale
If one of the analogue input modules is plugged in Module-1 socket and
measurement input selection parameter ,which is explained in
Section 8.2.3 for Module-1 alarm output, is , can be defined
alarm set value for analogue input module in Module-2.
Parameter can be adjusted from minimum set value of 2nd
sensor input and maximum set value of 2nd sensor input
Also point position of parameter and measured value from
analogue input module (2nd sensor input) is the same.
In this conditions, alarm output operates according to 2nd sensor input
value and parameter.
Set value of Heating FailureAlarm
If CT input module (EMI-420) is plugged in Module-1 socket and
Module-1 alarm type parameter which is explained in Section
8.2.3 is , parameter can be adjusted from 0.0 to
100.0A
V
V
Set value can be adjusted from minimum value of set scale
to maximum value of set scale
Set value of Heating FailureAlarm
If one of the analogue input modules is plugged in Module-1 or Module-
2 socket and measurement input selection parameter which is
explained in Section8.2.5 for Module-1 alarm output is ,
can be defined alarm set value for analogue input module in Module-1
or Module-2 socket.
Parameter can be adjusted from minimum set value of 2nd
sensor input and maximum set value of 2nd sensor input
Also point position of parameter and measured value from
analogue input module (2nd sensor input) is the same.
In this conditions, alarm output operates according to 2nd sensor input
value and parameter.
