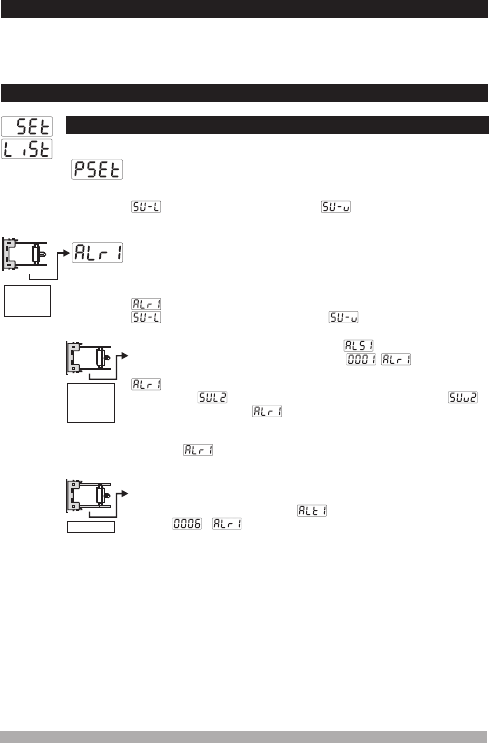

8.1.1 Process and Alarm SET Parameters
Parameters are divided into two groups. These can be accessed by operator and
technician. Also, they are grouped into subgroups according to their functions. The subgroups
are named as menu pages.
This is the device’s process set value. Controlling is done according to
this value by process control outputs.
If EMO-400 Relay, EMO-410 SSR Driver or EMO-420 Digital
(Transistor) output module is plugged in Module-1 socket and output is
configured as an alarm output, this parameter defines the set value of
the alarm output.
8. Parameters
8.1 Operator Parameters
65
EMO-400
EMO-410
EMO-420
MODULE-2
EMI-410
EMI-430
EMI-440
EMI-450
Process set value can be adjusted from minimum value of set scale
to maximum value of set scale
MODULE-2
EMI-420
Set value of Heating FailureAlarm
Set value can be adjusted from minimum value of set scale
to maximum value of set scale
If CT input module (EMI-420) is plugged in Module-2 socket and
Module-1 alarm type parameter which is explained in Section
8.2.3 is , parameter can be adjusted from 0.0 to
100.0A
V
V
If one of the analogue input modules is plugged in Module-2 socket and
measurement input selection parameter which is explained in
Section 8.2.3 for Module-1 alarm output, is , can be defined
alarm set value for analogue input module in Module-2.
Parameter can be adjusted from minimum set value of 2nd
sensor input to maximum set value of 2nd sensor input .
Also point position of parameter and measured value from
analogue input module (2nd sensor input) is the same.
In this conditions, alarm output operates according to 2nd sensor input
value and parameter.
