Parameter can be changed with

increment and decrement

buttons.

Press Enter button to confirm the

changed value and access to the

following parameter.

Technician can access to the

following menu by entering menu

changing next button.

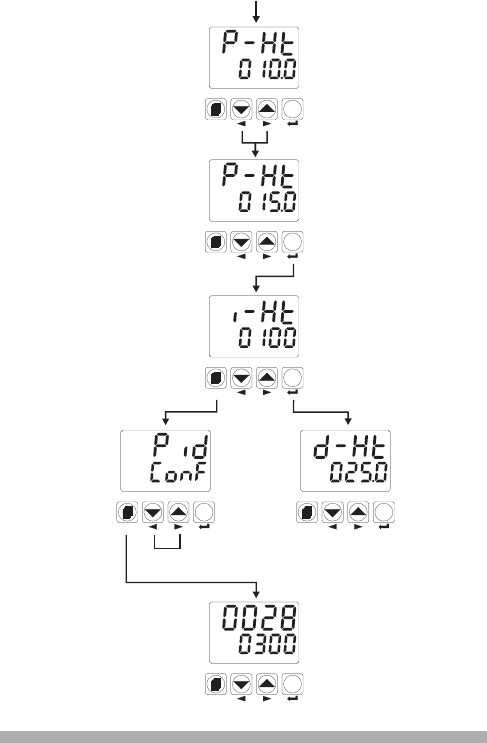

PID CONF Menu

Technician turns to Menu page

by pressing Menu button.

If Menu button is

pressed again,

operation screen is

shown.

Operation Screen

Heating Proportional Band

Selection

Heating Integral Time

Heating

Derivative

Time

61

Operator can not access to this

parameter

Heating Proportional Band

Selection

Operator can not access to this

parameter

Continue to press menu changing next and back buttons to

change the menu page.
