User manual

Enter password with increment
and decrement buttons
Press Enter button to confirm
password
Operation
Screen
Technician can access to the
following menu by entering menu
changing next button
Technician can access to Pıd
ConF menu by pressing Enter
button
Technician Password
60
Operator can not access to this
menu.

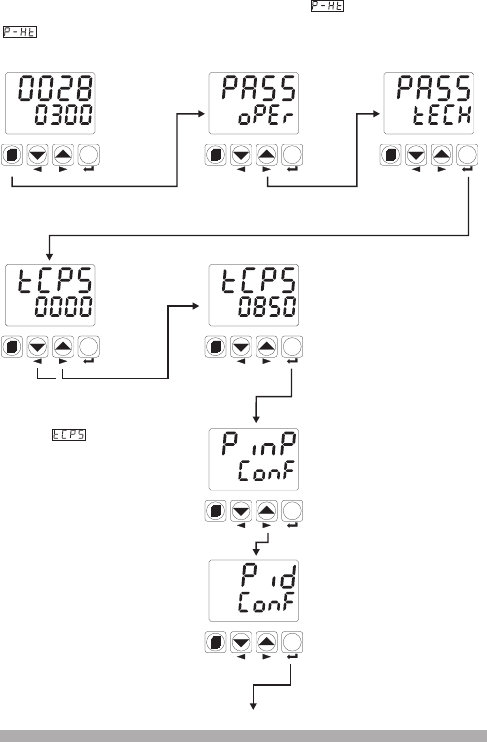

Example-2 : “To change heating proportional band parameter in Pıd Conf” menu.
Parameter is on Pıd ConF menu. For accessing to this parameter, user must access to
“Pıd ConF” menu firstly.
Technician can access to the former
menu by pressing menu changing
back button
PINP CONF Menu
Pıd CONF Menu
When menu changing next button is
pressed Technician Menu Entering
screen is shown.
Technician
Menu Entering
Screen
Technician Password Entering screen is accessed by pressing SET button.
When menu button is
pressed, Operator Menu
Entering screen is shown.
Operator
Menu
Entering
Screen
When screen is shown,
technician parameters can be seen
by pressing SET button without
entering password. But technician
can not change the parameters.
Please refer to Section 8.2.8
(Operator and Technician
Passwords)
Operator can not access to this
menu.
If technician
password is
not 0,
technician
password
entering
screen is
shown
