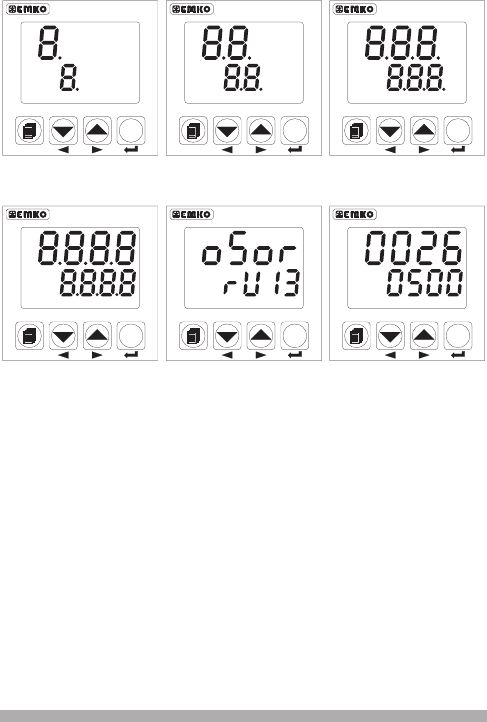

When power on, display of the device is like below:
Second segments of top and
bottom displays are tested.
Fourth segments of top and
bottom displays are tested.
On top display which modules
are plugged in Module-1 and
Module-2 socket and on bottom
display revision number are
shown. All leds are energised.
Above, there is EMO-410 SSR
Driver Output module in
Module-1 socket and EMO-400
Relay Output Module in
Module-2 socket. Revision
number is “13”.
Main operation
screen is shown
If there is an unexpected situation while opening the device, power off the
device and inform a qualified personnel.
c
Third segments of top and
bottom displays are tested.
First segments of top and
bottom displays are tested
