User manual

°C
°F
V
O1
O2
O3
SV
REMOTE RAMP MAN AUTO
AT
ESM-4450
SET
Process Controller
41

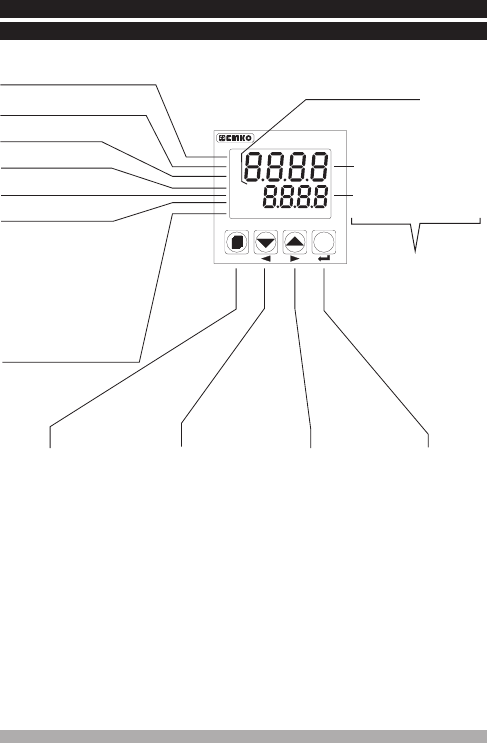

7.1 Definition of Front Panel
LED indication of °C:Centigrade Unit
LED indication of °F
Fahrenheit Unit
LED indication of units
other than °C and °F
LED indication of
Output-1 Status
LED indication of SV, Process
set value
LED indication of AT, Autotune
is active
Displays
Process Value (PV)
and Parameter
Displays Proses Set
Value
Parameter
(SV) and
Menu button
This button is used
to access to the all
menus and to
move up to another
menu in the menu
list
This button is used
to access to the
process set value
and use as OK
button in program
parameters.
This button is used
to increase the
value and access
to the menu pages
This button is used
to decrase the
values and access
to the menu pages
7.Definition of Front Panel and Accessing to the Parameters
Note-1: If increment or decrement button is pressed for 5 seconds continuously,
increment and decrement number become 10, if increment or decrement button is
pressed for 10 seconds continuously, increment and decrement number become 100.
Note-1
Note-1
LED indication of
Automatic operation
(For process output)
LED indication of Manual
operation (For process
output)
LED indication of Ramp&
Soak operation is active
LED indication of Operation
with Remote set value
For detailed information;
Please refer to
Section 8.1.1
(Process and
Alarm Set Parameters)
and 8.1.3 (Function
selection for Top and
Bottom Display)
LED indication of
Output-2 Status
LED indication of
Output-3 Status
