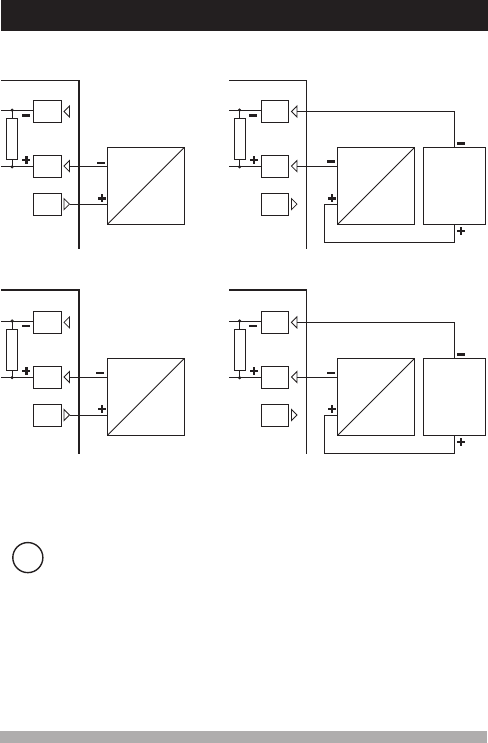

5.1.3 Connection of Serial Transmitter(Loop Powered) to EMI-410 0/4...20 mA

Current Input Module

Current

Output

mAZ

Transmitter

External

Power

Supply

Note 2

External

Power

Supply

Note 2

Module-2

Module-1

Module-2

Module-1

Note-1 Note-1

Note-1 Note1

12 V

Maximum

50mA

12 V

Maximum

50mA

12 V

Maximum

50mA

12 V

Maximum

50mA

Transmitter connection by using supply

voltage on the device

Transmitter connection by using external supply

voltage source.

Note 2 : External power supply must be selected according to power supply voltage range and

required current for transmitter.

Note-1 : There is internal 2R7 shuntW

EMI-410, EMI-430, EMI-440 or EMI-450 analogue input modules can not be

plugged-in Module-1 and Module-2 socket at the same time.
