User manual

4.1 Input Modules
4.1.1 EMI-400 Digital Input Module
21

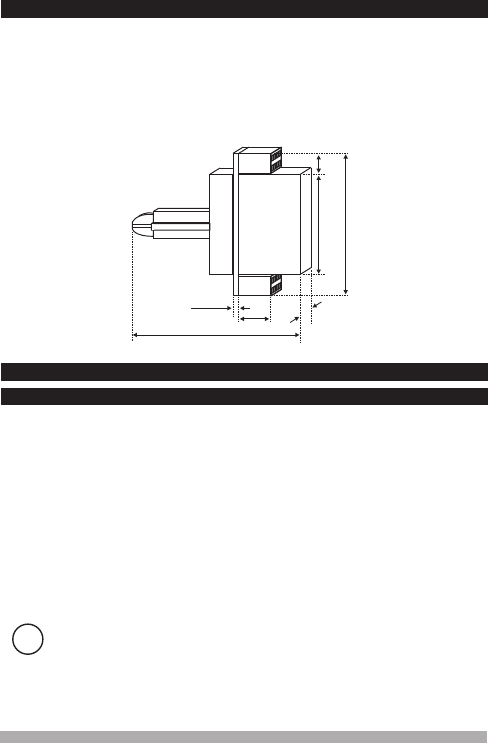

Dimensions of Input/Output Modules
41.4mm
8.5mm
1.5mm
20.3mm
5mm
30.7mm
14mm
Specifications of EMI-400 Digital Input Module
EMI-400 Digital input module can be installed to Module-1 or Module-2 socket for using the digital
input functions.
Applications of EMI-400 Digital Input Module
It is used to run, stop and pause ramp-soak functions in RAMP/SOAK applications.
It can be used to operate the process control output as AUTOMATIC/MANUAL, start the PID tune
operation and latch canceling.
Detailed information about functions of Digital Input Module functions are
given in parameters section. For using these functions EMI-400 Digital Input
Module must be installed to Module-1 or Module-2 socket.
ESM-4450 process controller is a modular product which is designed to operate with
additional analogue and digital input/output units which user may need.
Two input/output modules can be plugged in the device by the user. User
the product for different applications according to the system requirements with the input/output
modules which are described in this section.
may configure
4.Definitions and Specifications of Modules
Input Type :Normally Open Contact, NPN , PNP , Voltage Input ( 2 Volt and below 2 Volt is
Logic “0”, 4 Volt and above 4 Volt is Logic “1”. Maximum 30V can be applied)
Dimensions :14x30.7x41.4mm
Input Resistance : 2K2 W .
